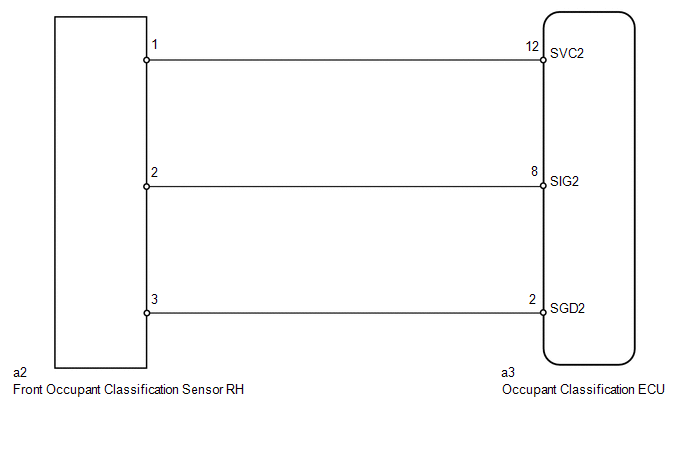

DTC B1781: Front Occupant Classification Sensor RH Circuit Malfunction [08/2019 - ]: Wiring Diagram

GTY948441Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
