DTC B1785: Front Occupant Classification Sensor LH Collision Detection [08/2015 - 08/2019]: Wiring Diagram

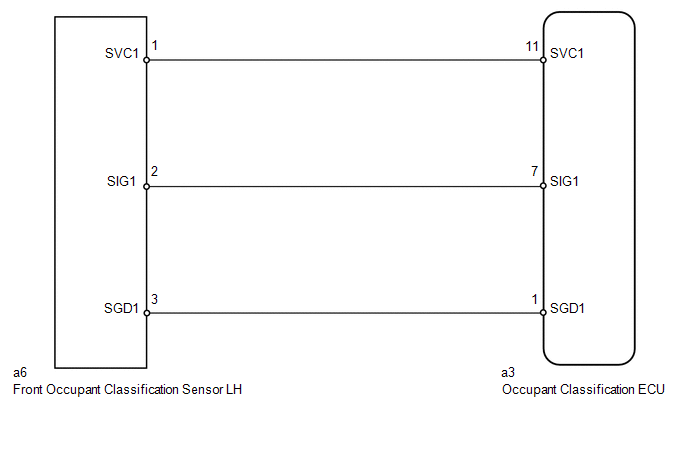

GTY669432Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
