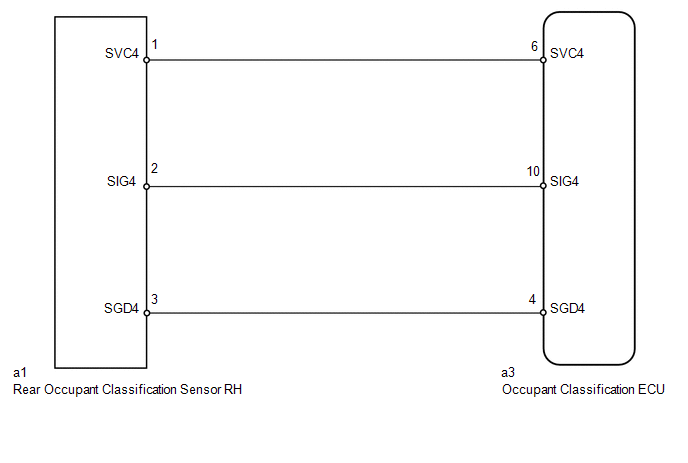

DTC B1788: Rear Occupant Classification Sensor RH Collision Detection [08/2015 - 08/2019]: Wiring Diagram

GTY669426Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
