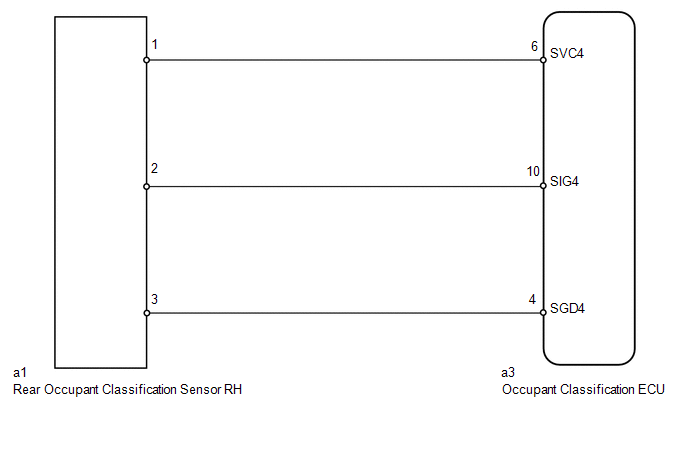

DTC B1788: Rear Occupant Classification Sensor RH Collision Detection [08/2019 - ]: Wiring Diagram

GTY948428Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
