System Diagram [08/2015 - 08/2019]

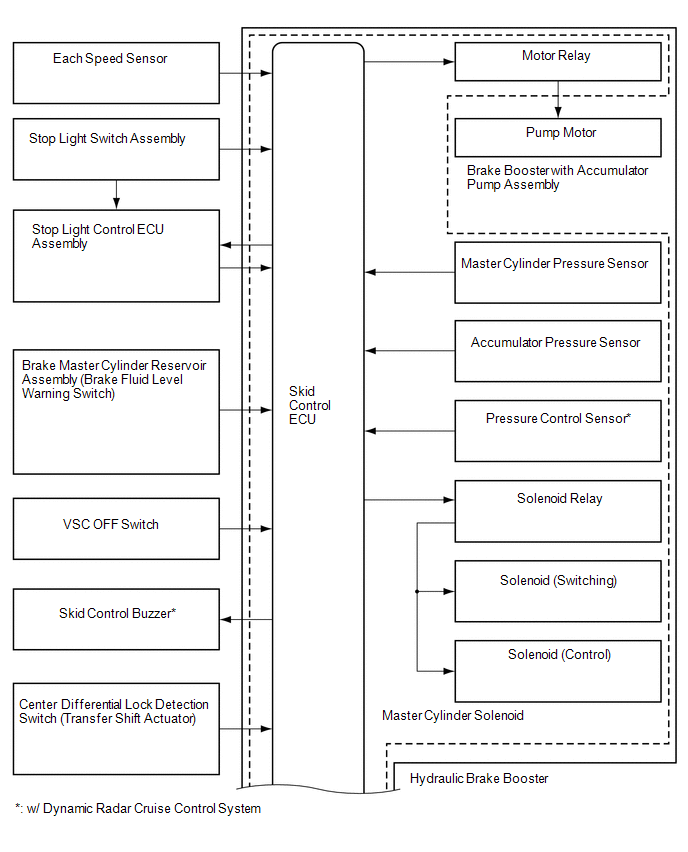

Fig 1: Vehicle Stability Control System Wiring Diagram (1 Of 3)
GTY648578Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

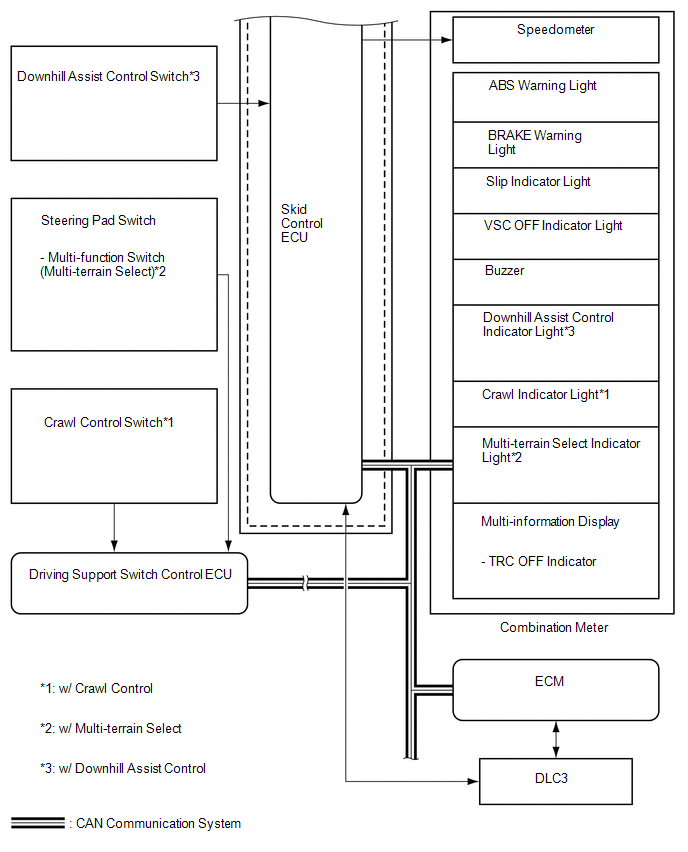

Fig 2: Vehicle Stability Control System Wiring Diagram (2 Of 3)
GTY672269Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 3: Vehicle Stability Control System Wiring Diagram (3 Of 3)
GTY683414Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
COMMUNICATION TABLE

Sender Receiver Signal Line
ECM Skid control ECU
  • Engine speed signal
  • Accelerator pedal position signal
  • Intake air temperature signal
  • Shift position signal
  • TC terminal status
 CAN communication
Skid control ECU ECM
  • Yaw rate and acceleration signal
  • VSC data signal
  • Wheel speed signal
 CAN communication
Skid control ECU Combination meter
  • Warning/indicator light signal
  • Vehicle speed signal
  • Buzzer sound request signal
 CAN communication
4 wheel drive control ECU Skid control ECU L4 status signal CAN communication
Steering angle sensor Skid control ECU Steering angle signal CAN communication
