System Diagram [10/2016 - 10/2017]

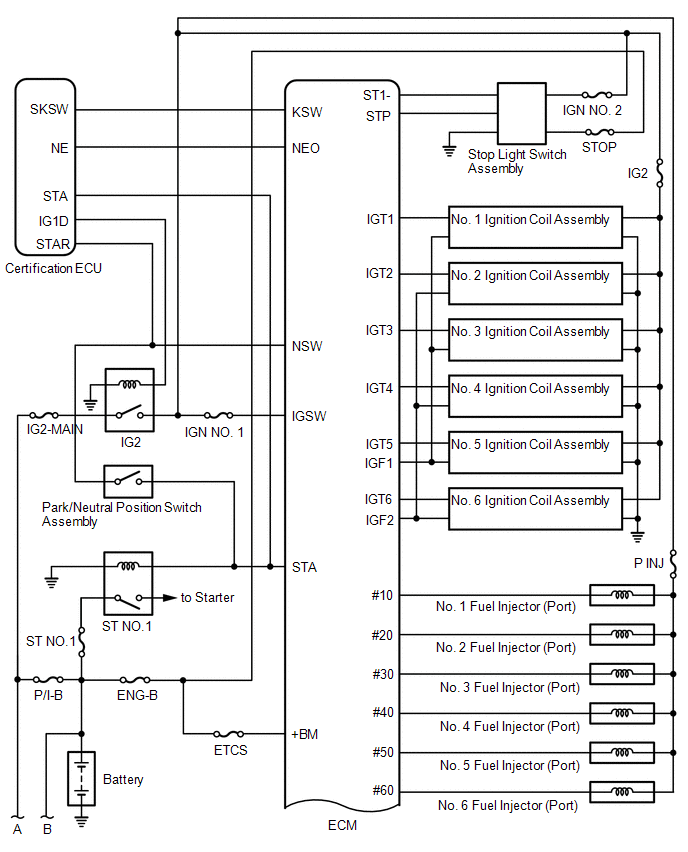

Fig 1: Engine Control System (SFI) System Diagram [10/2016 - 10/2017] (1 Of 6)
GTY633992Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

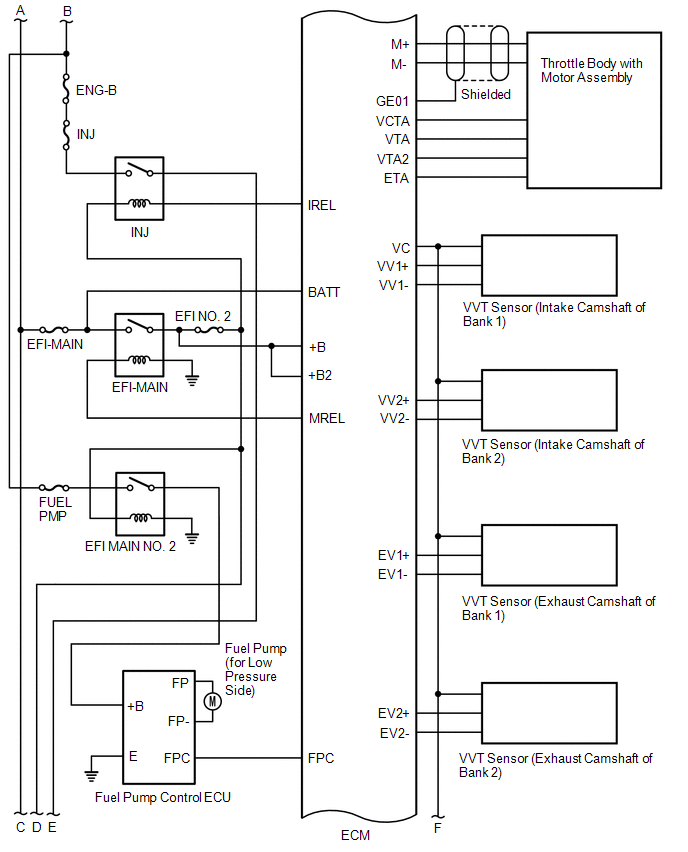

Fig 2: Engine Control System (SFI) System Diagram [10/2016 - 10/2017] (2 Of 6)
GTY665053Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

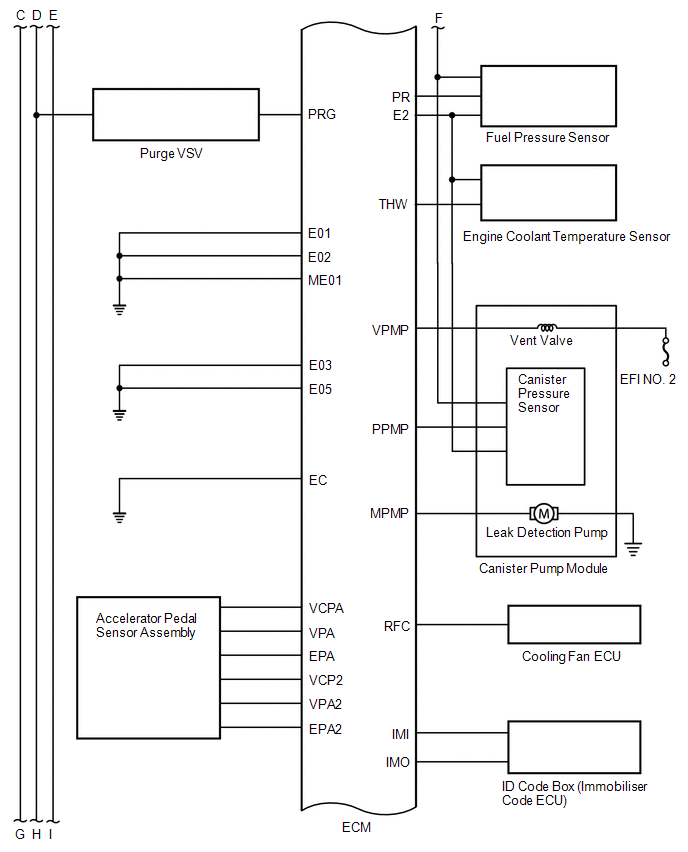

Fig 3: Engine Control System (SFI) System Diagram [10/2016 - 10/2017] (3 Of 6)
GTY457705Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

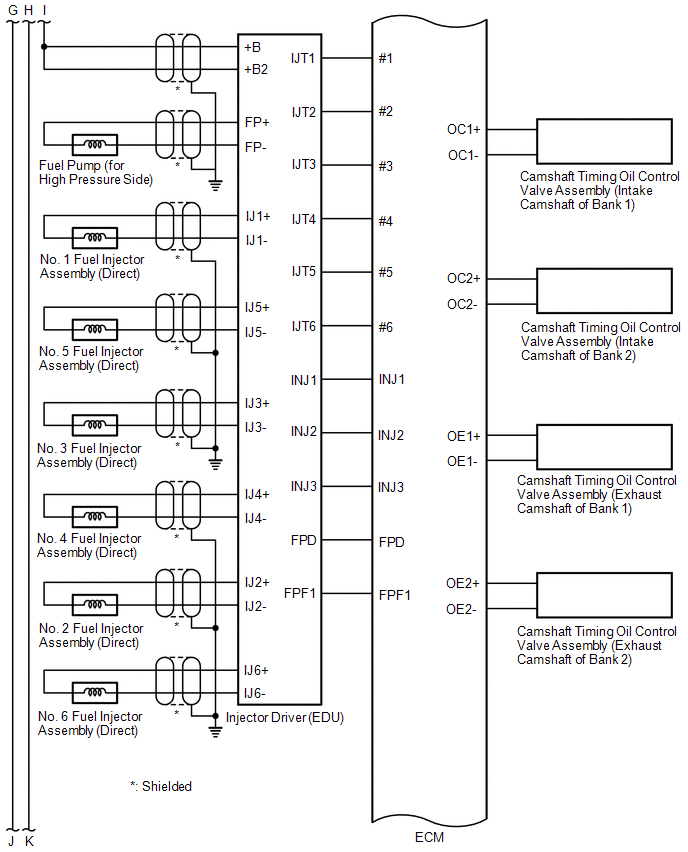

Fig 4: Engine Control System (SFI) System Diagram [10/2016 - 10/2017] (4 Of 6)
GTY466768Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

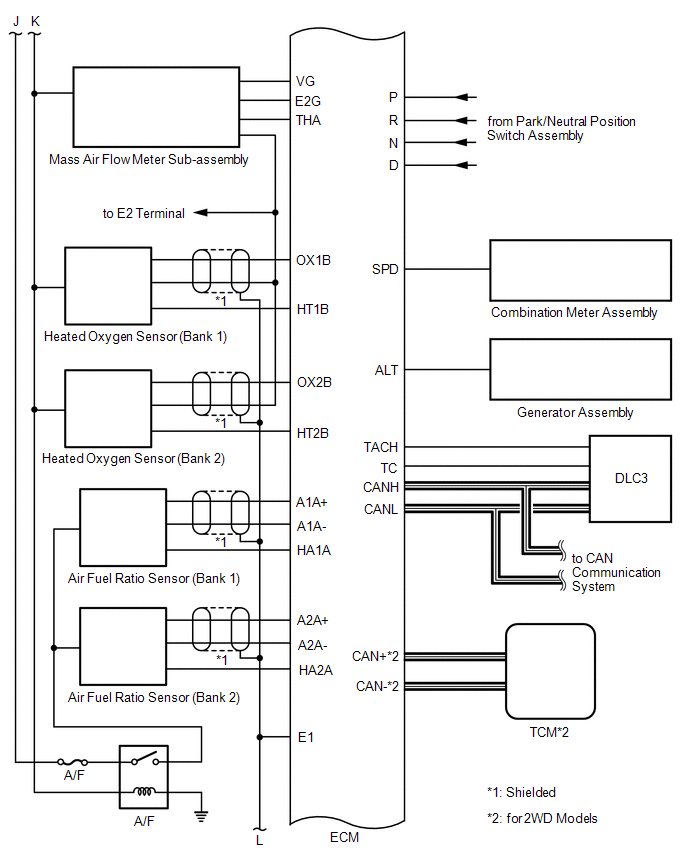

Fig 5: Engine Control System (SFI) System Diagram [10/2016 - 10/2017] (5 Of 6)
GTY463718Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

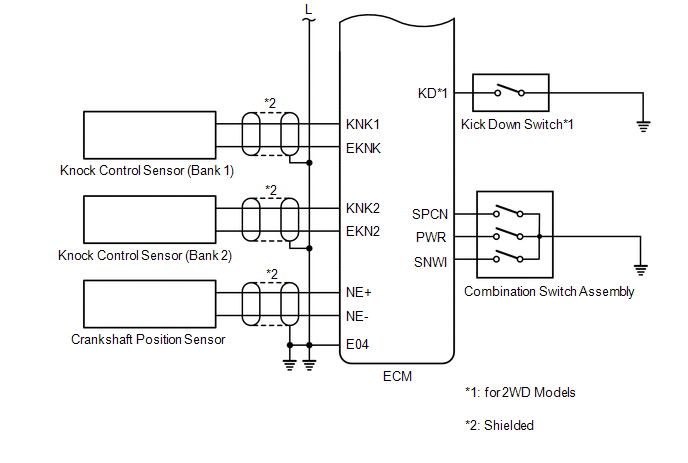

Fig 6: Engine Control System (SFI) System Diagram [10/2016 - 10/2017] (6 Of 6)
GTY627755Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
