System Diagram [04/2013 - 10/2016]

  1. SYSTEM DIAGRAM

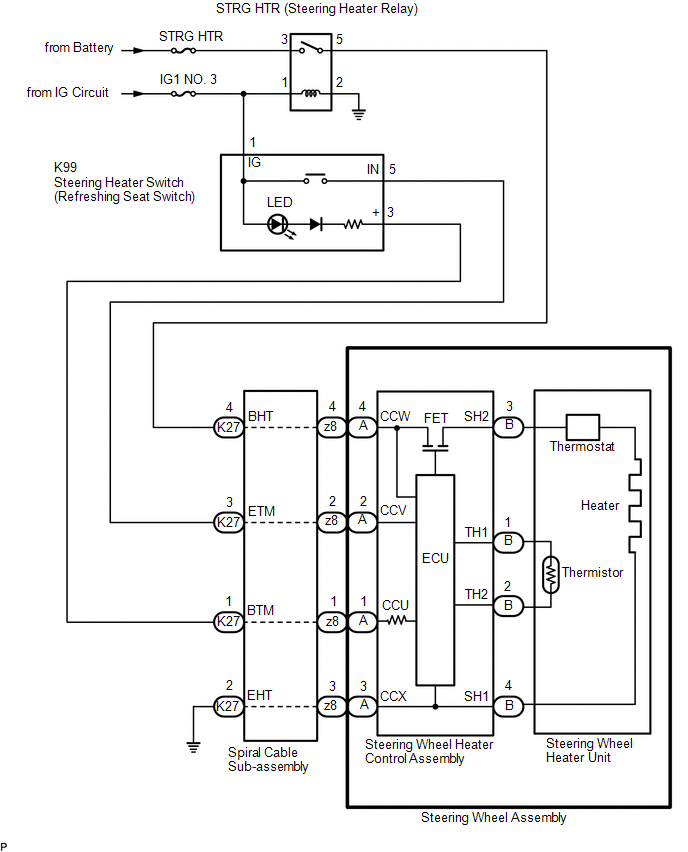

    Fig 1: Heated Steering Wheel System Diagram
    GTY620322Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
