Power Source Mode does not Change [09/2015 - ]: Wiring Diagram

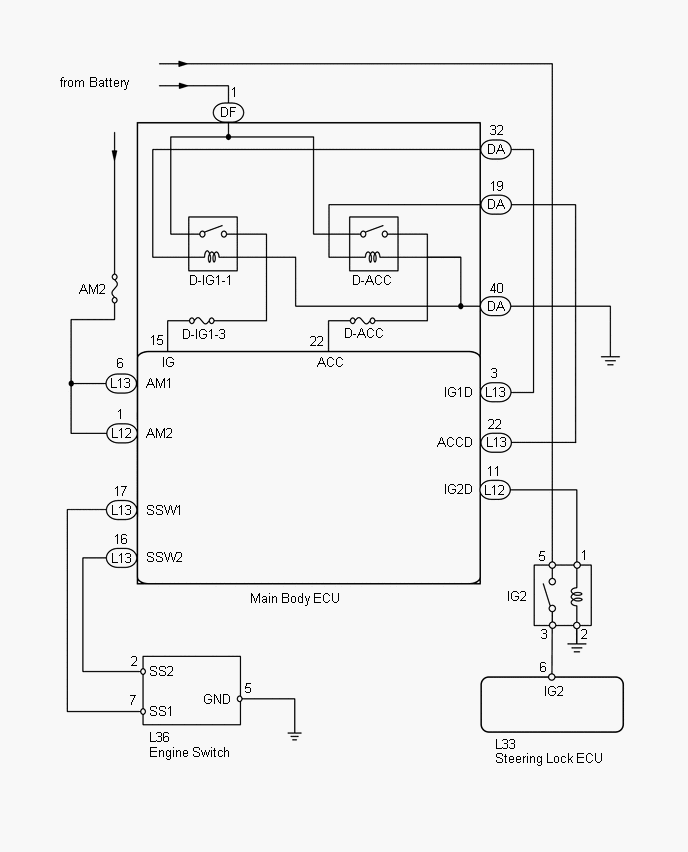

Fig 1: Power Source Circuit Diagram
GTY636356Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
