Multi-media Module Receiver Assembly Communication Stop Mode [09/2015 - ]
>>
Wiring Diagram
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Multi-media Module Receiver Assembly Communication Stop Mode [09/2015 - ]: Wiring Diagram

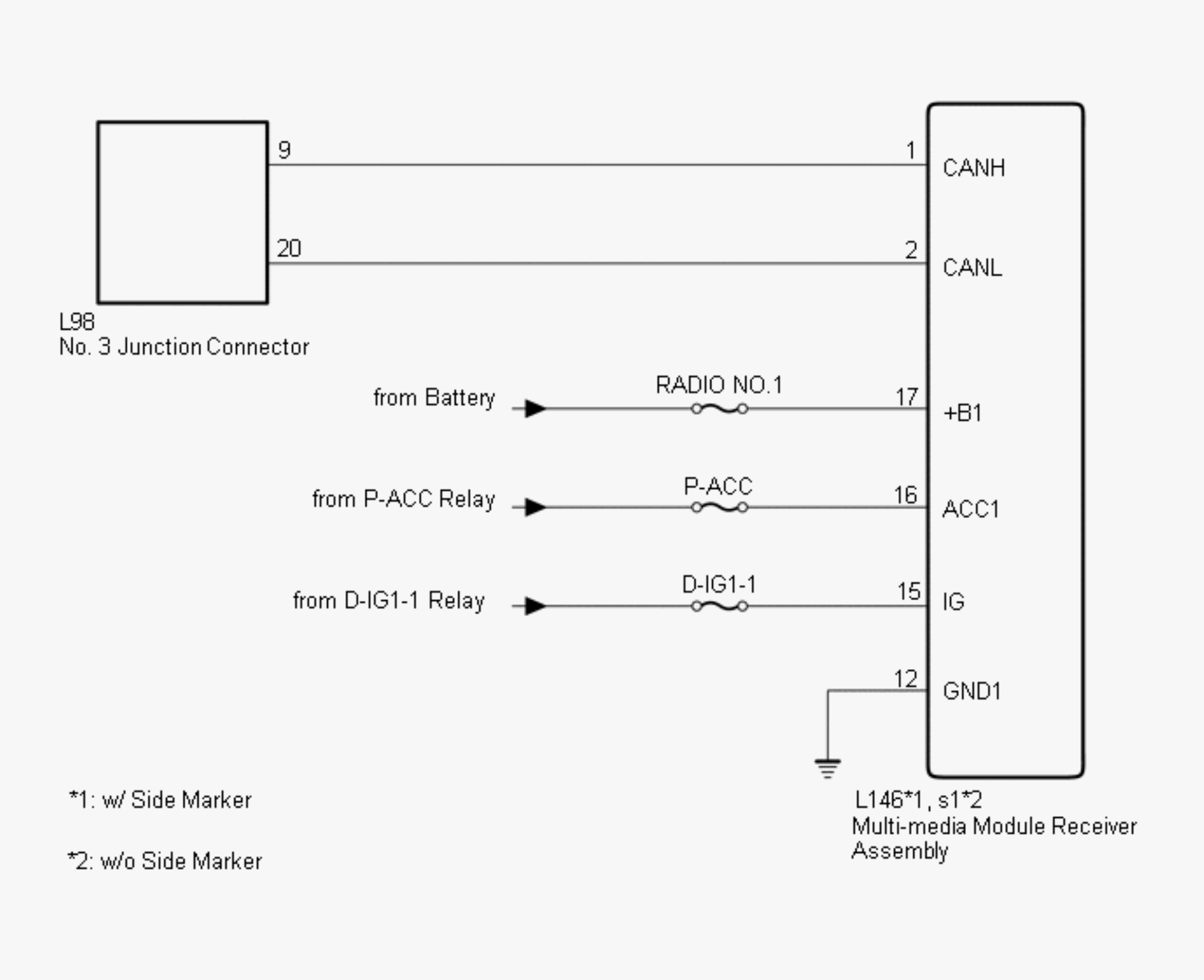

Fig 1: Multi - Media Module Receiver Assembly Circuit Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
