Variable Gear Ratio Steering System - Diagnostic Codes & Symptom Tests
>>
Variable Gear Ratio Steering System
>>
DTC C1595/55: Lost Communication with Steering Angle Sensor Module; DTC C15C4/68: Steering Angle Signal (Test Mode DTC) [09/2015 - ]
>>
Wiring Diagram
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
DTC C1595/55: Lost Communication with Steering Angle Sensor Module; DTC C15C4/68: Steering Angle Signal (Test Mode DTC) [09/2015 - ]: Wiring Diagram

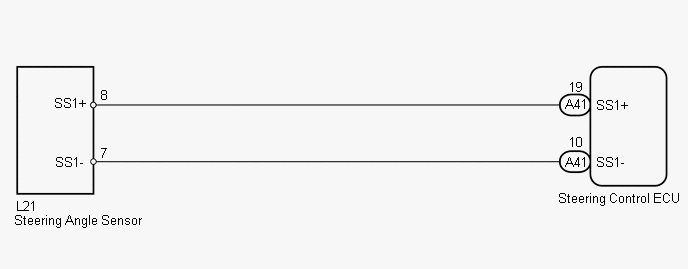

Fig 1: Steering Angle Sensor Circuit Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
