DCM Data Signal Circuit between Navigation ECU and DCM [09/2015 - ]: Wiring Diagram

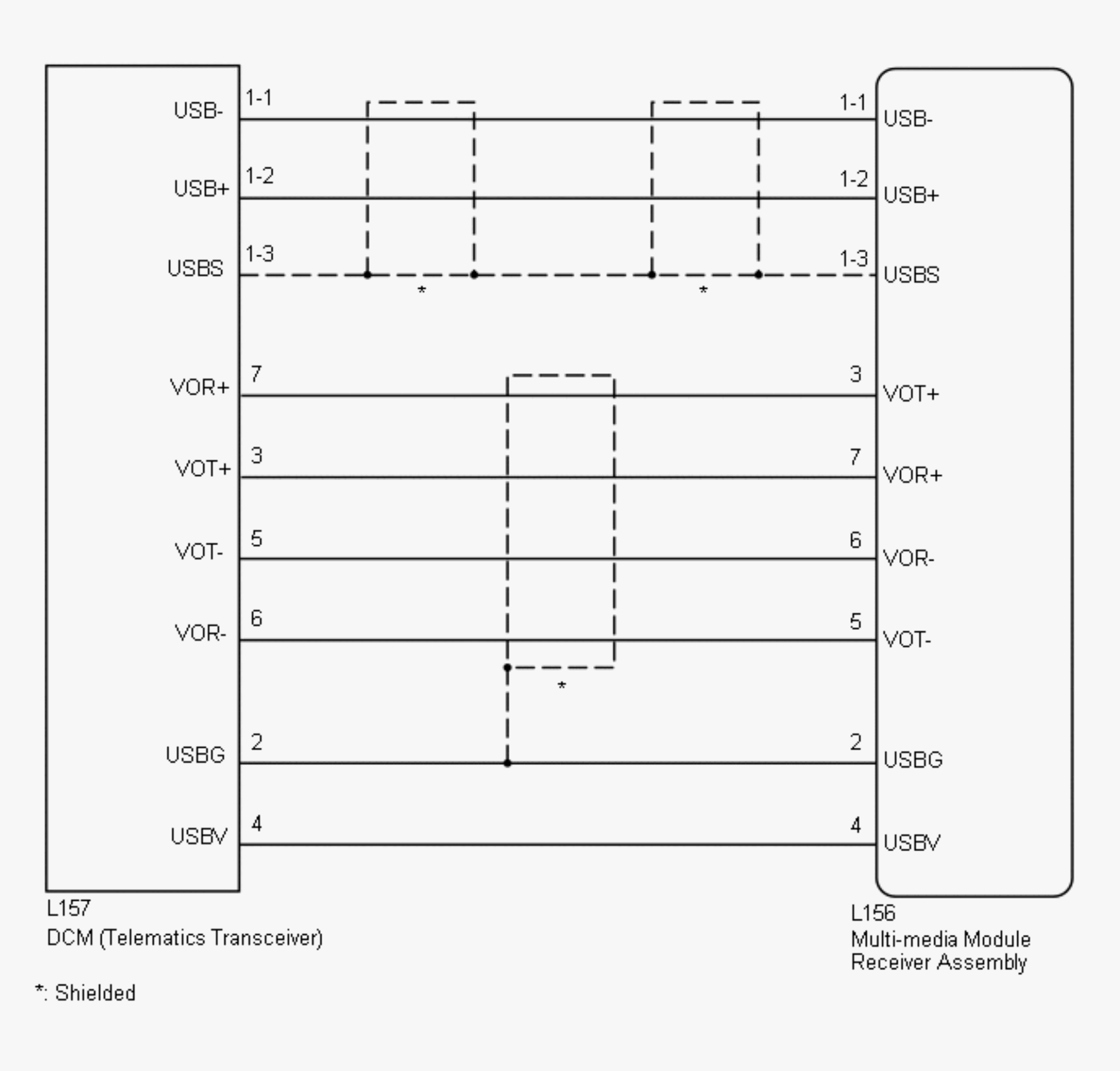

Fig 1: DCM (Telematics Transceiver) Circuit Diagram
GTY618639Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
