Installation [09/2015 - ]: Procedure

  1. INSTALL STEERING COLUMN ASSEMBLY (TILT STEERING GEAR ASSEMBLY WITH MOTOR)
    1. Install the steering column assembly with the 4 nuts.

      Torque: 26 N*m (260 kgf*cm, 19 ft.*lbf)

    2. Connect the connectors and wire harness clamps to the steering column.
  2. INSTALL NO. 2 STEERING INTERMEDIATE SHAFT ASSEMBLY
    1. Install the clamp to the steering column hole cover sub-assembly.
    2. Align the matchmarks on the No. 2 steering intermediate shaft assembly and steering column.

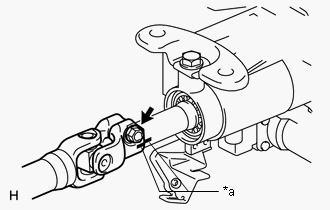

      GTY678829Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION

      *a Matchmark
    3. Install the bolt.

      Torque: 35 N*m (360 kgf*cm, 26 ft.*lbf)

    4. Align the matchmarks on the No. 2 steering intermediate shaft assembly and power steering link.

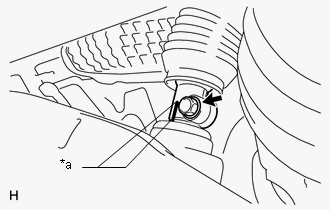

      GTY657075Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION

      *a Matchmark
    5. Install the bolt.

      Torque: 35 N*m (360 kgf*cm, 26 ft.*lbf)

  3. PLACE FRONT WHEELS FACING STRAIGHT AHEAD
  4. INSTALL NO. 1 AIR DUCT SUB-ASSEMBLY
    1. Attach the 2 claws to install the air duct.
    2. Install the bolt.

      Torque: 9.8 N*m (100 kgf*cm, 87 in.*lbf)

    3. Attach the 2 claws and install the wiring harness protector.
  5. INSTALL NO. 1 LOWER INSTRUMENT PANEL AIRBAG ASSEMBLY

    Refer to PROCEDURE - Step 1

  6. INSTALL TURN SIGNAL SWITCH ASSEMBLY WITH SPIRAL CABLE SUB-ASSEMBLY
    1. Install the turn signal switch assembly with spiral cable to the steering column with the clamp.
    2. Connect the connectors to the turn signal switch assembly with spiral cable.
  7. INSTALL STEERING COLUMN COVER (w/o Driver Monitor Camera)
    1. Attach the claw to install the upper steering column cover.
    2. Attach the 4 clips to install the upper steering column cover onto the instrument cluster finish panel.
    3. Attach the 2 claws to install the lower steering column cover.
      NOTE:

      Do not damage the tilt and telescopic switch.

    4. Install the 3 screws.
  8. INSTALL STEERING COLUMN COVER (w/ Driver Monitor Camera)
    1. Connect the driver monitor connector.
    2. Attach the claw to install the upper steering column cover.
    3. Attach the 4 clips to install the upper steering column cover onto the instrument cluster finish panel.
    4. Attach the 2 claws to install the lower steering column cover.
      NOTE:

      Do not damage the tilt and telescopic switch.

    5. Install the 3 screws.
  9. ADJUST SPIRAL CABLE SUB-ASSEMBLY

    Refer to PROCEDURE - Step 5

  10. INSTALL STEERING WHEEL ASSEMBLY

    (Refer to INSTALLATION [09/2015 - ] )

  11. INSPECT STEERING WHEEL CENTER POINT
  12. CONNECT CABLE TO NEGATIVE AUXILIARY BATTERY TERMINAL
    NOTE:
  13. INSTALL BATTERY SERVICE HOLE COVER LH

    Refer to PROCEDURE - Step 4

  14. INSTALL LUGGAGE COMPARTMENT MAT SUB-ASSEMBLY

    Refer to PROCEDURE - Step 14

  15. CHECK SRS WARNING LIGHT

    (Refer to DIAGNOSIS SYSTEM [09/2015 - ] )
