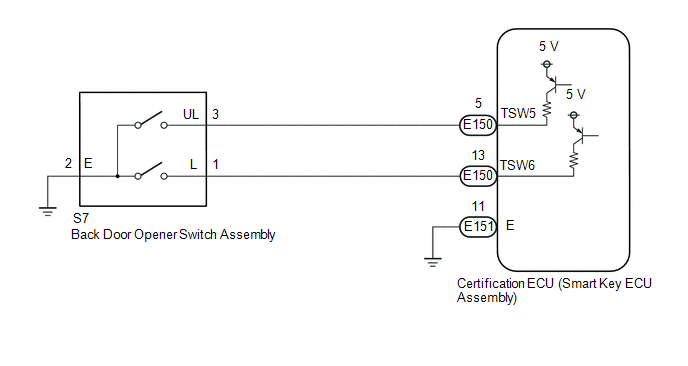

Back Door Entry Lock Function does not Operate [09/2015 - 08/2017]: Wiring Diagram

GTY631736

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
