Front Passenger Side Door Entry Unlock Function does not Operate [09/2015 - ]: Procedure

1. When the door control switch on the multiplex network master switch assembly is operated, check that the doors unlock and lock according to the switch operation. Refer to OPERATION CHECK [09/2015 - ] .

   OK

   Door locks operate normally.

Result:

NG

GO TO POWER DOOR LOCK CONTROL SYSTEM

Refer to HOW TO PROCEED WITH TROUBLESHOOTING [09/2015 - ] )

Result:

OK

See step  2

1. Connect the Techstream to the DLC3.
2. Turn the engine switch on (IG).
3. Turn the Techstream on.
4. Enter the following menus: Body Electrical / Main Body / Data List.
5. Read the Data List according to the display on the Techstream.
   MAIN BODY



   Tester Display	Measurement Item/Range	Normal Condition	Diagnostic Note
   FR Door Lock Pos	Front door RH unlock detection switch signal / UNLOCK or LOCK	UNLOCK: Front door RH unlocked LOCK: Front door RH locked	-

   OK

   The Techstream display changes correctly in response to the lock/unlock operation of the front passenger door.

Result:

NG

GO TO LIGHTING SYSTEM (Proceed to Door Unlock Detection Switch Circuit)

Refer to Door Unlock Detection Switch Circuit [09/2015 - ] )

Result:

OK

See step  3

1. Connect the Techstream to the DLC3.
2. Turn the engine switch on (IG).
3. Turn the Techstream on.
4. Enter the following menus: Body Electrical / Main Body / Data List.
5. Read the Data List according to the display on the Techstream.
   SMART ACCESS



   Tester Display	Measurement Item/Range	Normal Condition	Diagnostic Note
   P-Door Touch Sensor	Front passenger door touch sensor (unlock sensor) / ON or OFF	ON: Front passenger door touch sensor (unlock sensor) touched OFF: Front passenger door touch sensor (unlock sensor) not touched	Displays whether the unlock sensor is on or off (even if the sensor is touched and contact is maintained, "ON" is displayed only momentarily). Use this Data List item to help determine if there is an unlock sensor malfunction when the entry unlock function does not operate.

   OK

   The Techstream display changes correctly in response to the operation of the front door outside handle assembly (for front passenger door).

Result:

OK

REPLACE CERTIFICATION ECU (SMART KEY ECU ASSEMBLY)

Refer to REMOVAL [09/2015 - ] )

Result:

NG

See step  4

1. Disconnect the E151 certification ECU (smart key ECU assembly) connector.
2. Disconnect the z61 front door outside handle assembly (for front passenger door) connector.
3. Measure the resistance according to the value(s) in the table below.

   Standard Resistance

   Tester Connection	Condition	Specified Condition
   E151-2 (CLG2) - z61-6 (ANT1)	Always	Below 1 Ω
   E151-1 (CG2B) - z61-4 (ANT2)	Always	Below 1 Ω
   E151-2 (CLG2) or z61-6 (ANT1) - Body ground	Always	10 kΩ or higher
   E151-1 (CG2B) or z61-4 (ANT2) - Body ground	Always	10 kΩ or higher

4. Reconnect the z61 front door outside handle assembly (for front passenger door) connector.
5. Reconnect the E151 certification ECU (smart key ECU assembly) connector.

Result:

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR

Result:

OK

See step  5

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

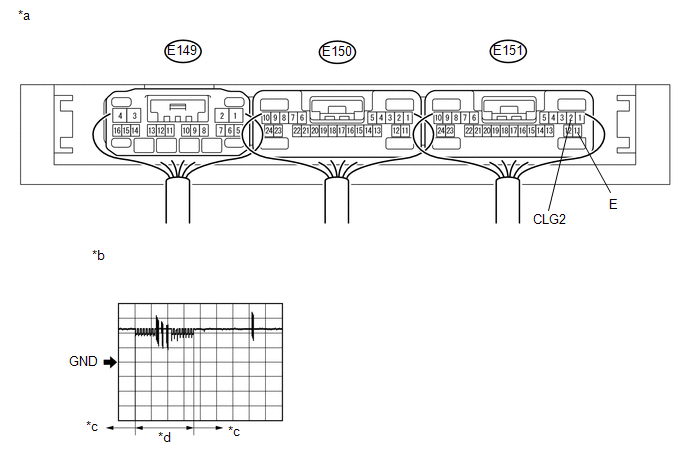

1. Using an oscilloscope, check the waveform.

   OK

   Tester Connection	Switch Condition	Tool Setting	Specified Condition
   E151-2 (CLG2) - E151-11 (E)	Procedure: Engine switch off Electrical key transmitter sub-assembly brought outside vehicle All doors locked Electrical key transmitter sub-assembly not near the vehicle Front passenger door unlock sensor touched	5 V/DIV., 50 ms/DIV.	Pulse generation (See waveform 1)

Result:

OK

REPLACE CERTIFICATION ECU (SMART KEY ECU ASSEMBLY)

Refer to REMOVAL [09/2015 - ] )

Result:

NG

REPLACE FRONT DOOR OUTSIDE HANDLE ASSEMBLY (FOR FRONT PASSENGER DOOR)

Refer to DISASSEMBLY [09/2015 - ] )
