DTC C1595-55: Lost Communication with Steering Angle Sensor Module; DTC C15C4-68: Steering Angle Signal (Test Mode DTC) [09/2015 - 08/2020]: Procedure

  1. CHECK DTC
    1. Check for DTCs. Refer to DTC CHECK / CLEAR [09/2015 - 08/2020] .
      RESULT

      Result Proceed to
      DTCs C15C1/74, C15C2/74 and U0126/56 are not output A
      DTCs C15C1/74, C15C2/74 and U0126/56 are output B

    Result:

    REPAIR CIRCUITS INDICATED BY OUTPUT DTCS

    Refer to DIAGNOSTIC TROUBLE CODE CHART [09/2015 - 08/2020] )

    Result:

    See step  2

  2. CHECK HARNESS AND CONNECTOR (VGRS ECU (STEERING CONTROL ECU) - STEERING SENSOR)
    1. Turn the engine switch off.
    2. Disconnect the E129 VGRS ECU (steering control ECU) connector.
    3. Disconnect the E131 steering sensor connector.
    4. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      E129-5 (SS1-) - E131-9 (SS2-) Always Below 1 Ω
      E129-6 (SS1+) - E131-8 (SS2+) Always Below 1 Ω
      E129-5 (SS1-) or E131-9 (SS2-) - Body ground Always 100 kΩ or higher
      E129-6 (SS1+) or E131-8 (SS2+) - Body ground Always 100 kΩ or higher
      E129-5 (SS1-) - E129-6 (SS1+) Always 1000 kΩ or higher

    Result:

    NG

    REPAIR OR REPLACE HARNESS OR CONNECTOR

    Result:

    OK

    See step  3

  3. CHECK STEERING SENSOR
    1. Reconnect the E129 VGRS ECU (steering control ECU) connector.

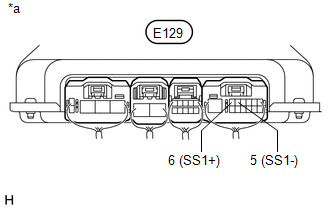

      GTY662710Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Reconnect the E131 steering sensor connector.
    3. Start the engine.
    4. Measure the voltage according to the value(s) in the table below.

      HINT:

      With the connector connected to the VGRS ECU (steering control ECU), measure the voltage from the rear of the connector.

      Standard Voltage

      Tester Connection Condition Specified Condition
      E129-5 (SS1-) - E129-6 (SS1+) Steering wheel rotated slowly Pulse waveform that alternates between 0 and 5 V is output
      TEXT IN ILLUSTRATION

      * a Component with harness connected
      (VGRS ECU [Steering Control ECU])

    Result:

    OK

    REPLACE VGRS ECU (STEERING CONTROL ECU)

    Refer to REMOVAL [09/2015 - ] )

    Result:

    NG

    REPLACE STEERING SENSOR

    Refer to REMOVAL [09/2015 - ] )
