System Diagram [11/2017 - 10/2018]

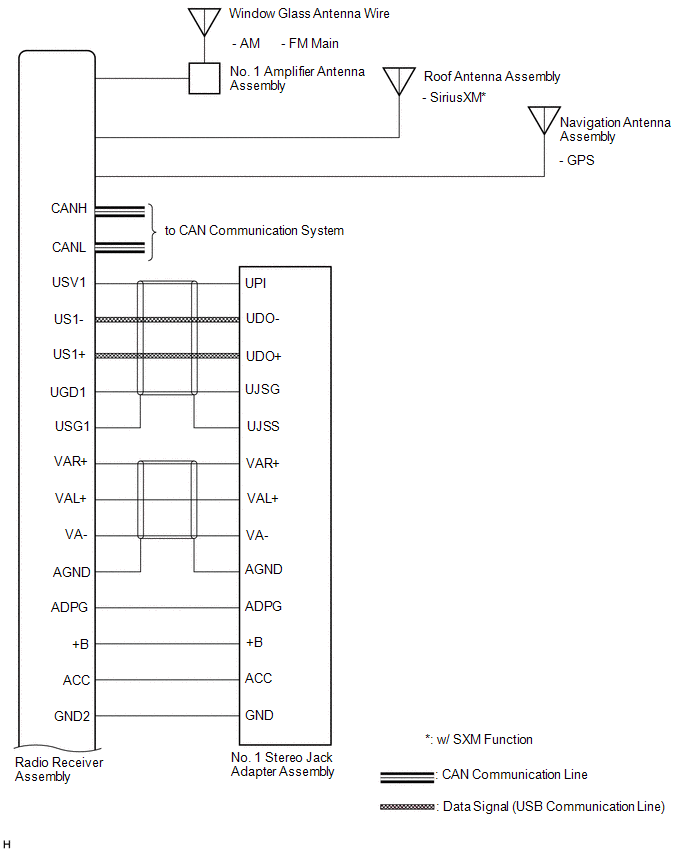

GTY815946Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

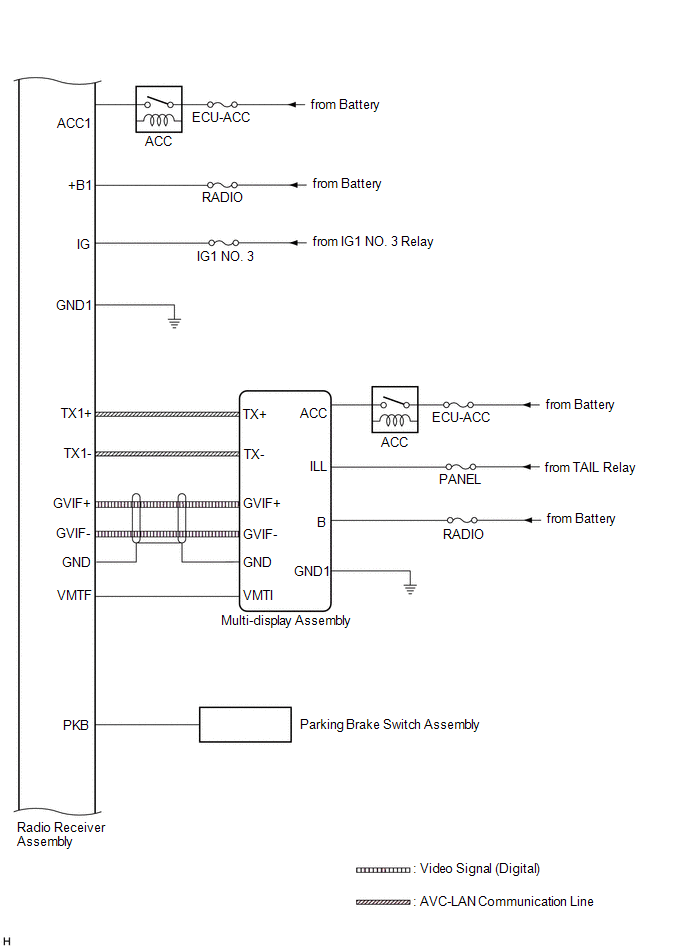

GTY821919Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

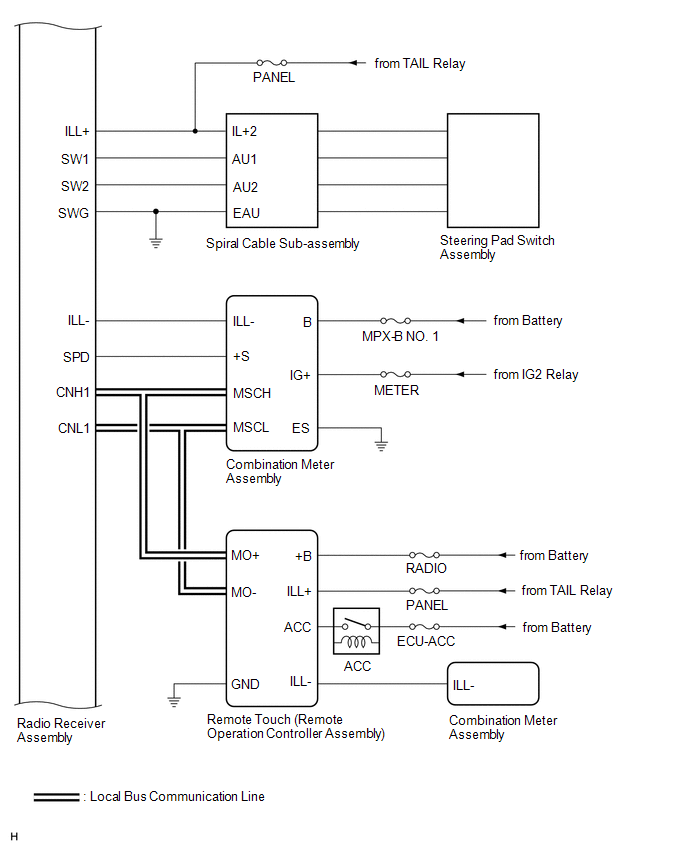

GTY823960Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

w/ Manual (SOS) Switch

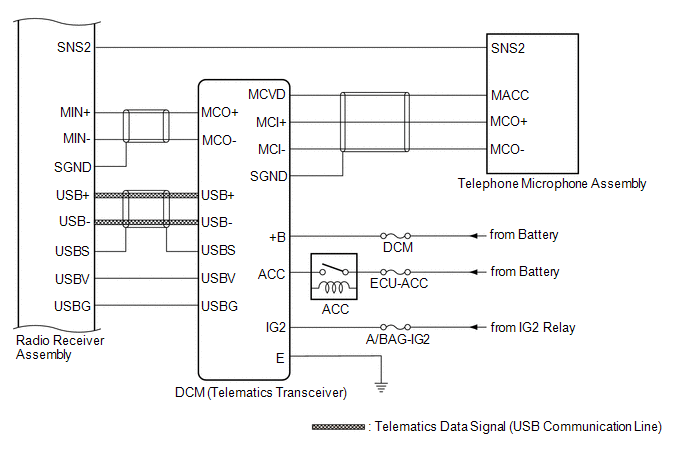

GTY791827Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

w/o Manual (SOS) Switch

GTY818831Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

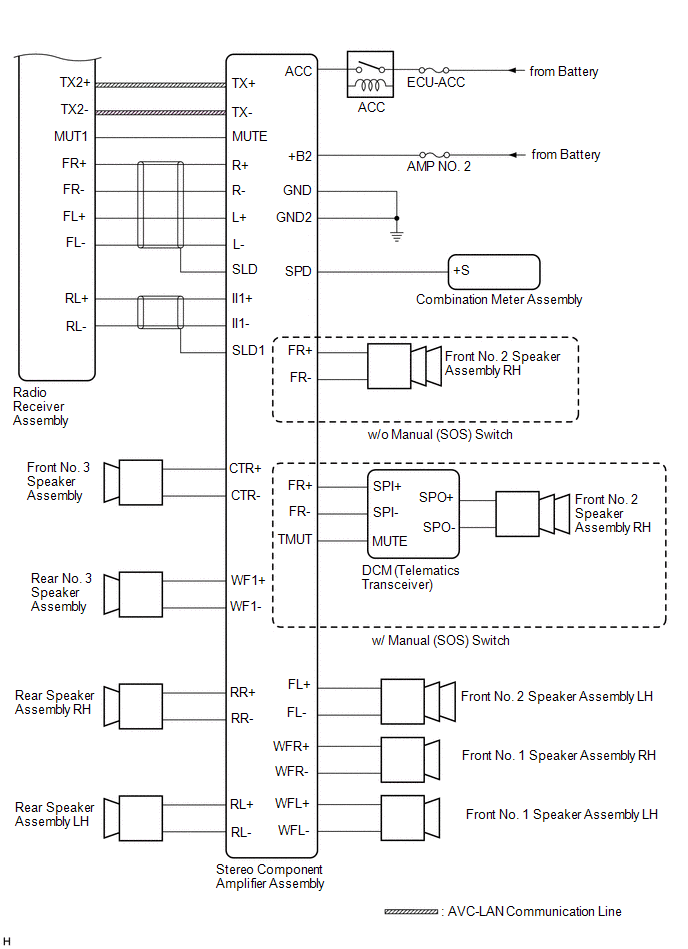

GTY781595Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
