Removal [09/2015 - ]: Procedure

  1. REMOVE MULTIPLEX NETWORK MASTER SWITCH ASSEMBLY WITH FRONT DOOR UPPER ARMREST BASE PANEL

    Refer to PROCEDURE - Step 4 [09/2015 - 08/2016] , or refer to PROCEDURE - Step 4 [08/2016 - 12/2017] , or refer to PROCEDURE - Step 4 [12/2017 - 08/2019] , or refer to PROCEDURE - Step 4 [08/2019 - ]

  2. REMOVE MULTIPLEX NETWORK MASTER SWITCH ASSEMBLY

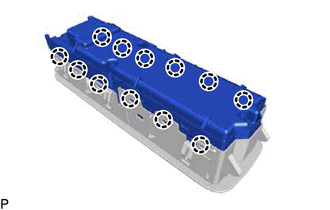

    1. Disengage the 12 claws and remove the multiplex network master switch assembly.
      GTY659854Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
