Intelligent Clearance Sonar System - Diagnostic Codes
>>
Intelligent Clearance Sonar System
>>
DTC U0232: Lost Communication with Blind Spot Monitor Slave Module; DTC U0233: Lost Communication with Blind Spot Monitor Master Module [08/2016 - 08/2019]
>>
Wiring Diagram
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.

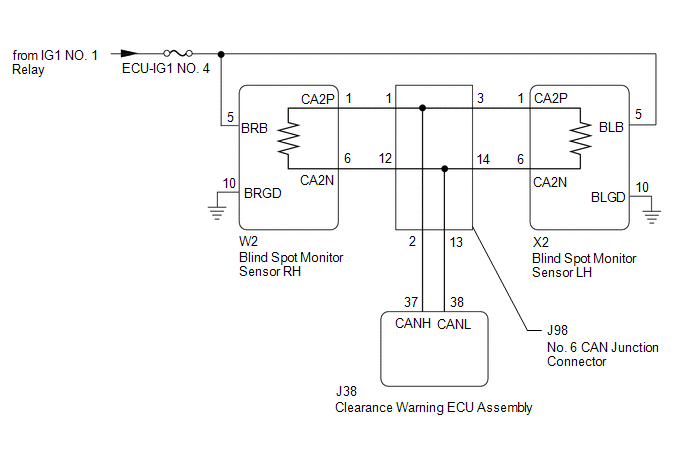

DTC U0232: Lost Communication with Blind Spot Monitor Slave Module; DTC U0233: Lost Communication with Blind Spot Monitor Master Module [08/2016 - 08/2019]: Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
