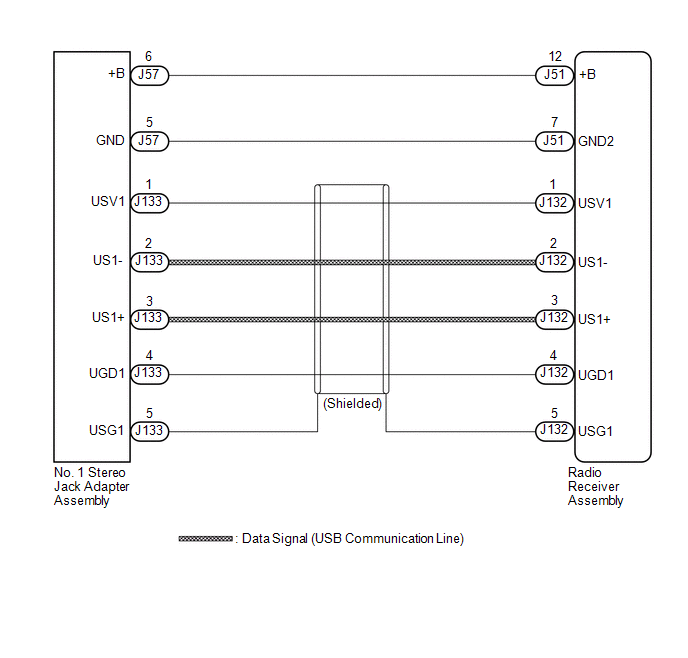

USB Audio System Recognition/Play Error [09/2015 - 08/2019]: Wiring Diagram

GTY628530

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
