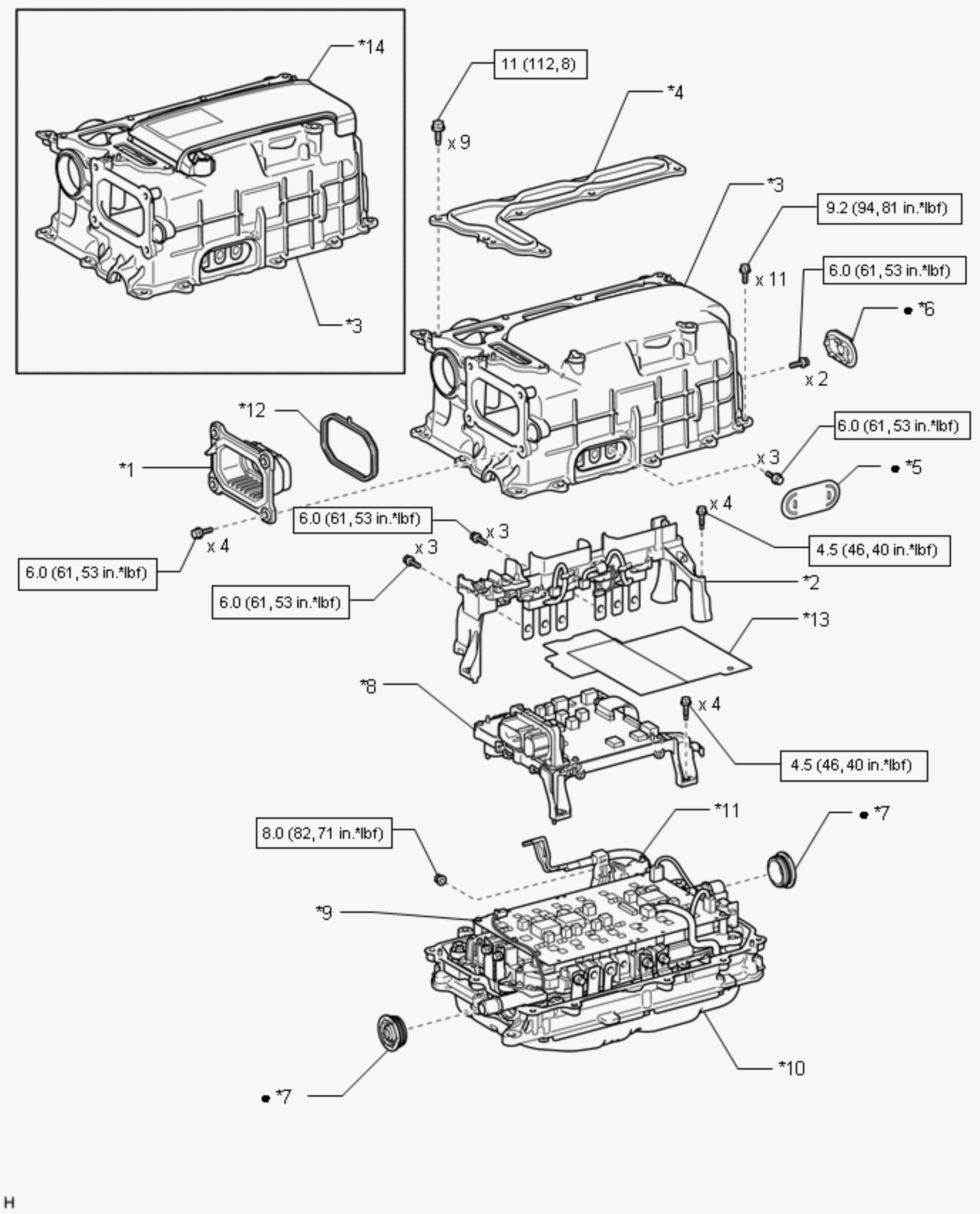

Components [08/2014 - ]: Illustration
| Callout | Description | Callout | Description |
| *1 | INVERTER SIGNAL CONNECTOR COVER | *2 | INVERTER TERMINAL WITH SENSOR SUB-ASSMEMBLY |
| *3 | INVERTER CASE WITH CONDENSER | *4 | INVERTER TERMINAL COVER |
| *5 | NO. 1 INVERTER DRAIN PLUG | *6 | NO. 2 INVERTER DRAIN PLUG |
| *7 | INVERTER UNION GROMMET | *8 | MG CONTROL COMPUTER WITH BRACKET SUB-ASSEMBLY |
| *9 | POWER MODULE INTELLIGENT TRANSISTOR KIT | *10 | HYBRID VEHICLE CONVERTER KIT |
| *11 | NO. 2 ENGINE ROOM WIRE | *12 | GASKET |
| *13 | PEN SHEET (May not be provided depending on the date of production) |
*14 | COVER (May not be provided depending on the date of production) |
| N*m (kgf*cm, ft.*lbf): Specified torque | • | Non - reusable part |
