Installation [07/2015 - ]: Procedure

  1. INSPECT STEERING COLUMN ASSEMBLY (for Manual Tilt and Manual Telescopic Steering Column)

    See step  3

  2. INSTALL STEERING INTERMEDIATE SHAFT ASSEMBLY
    1. Install the steering intermediate shaft assembly to the steering column assembly.

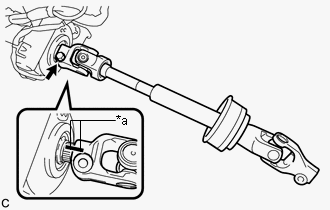

      GTY661406Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION

      *a Matchmark
      NOTE:

      Align the matchmarks on the steering intermediate shaft assembly and the steering column assembly.

    2. Install a new bolt.

      Torque: 35 N*m (360 kgf*cm, 26 ft.*lbf)

  3. INSTALL STEERING POST ASSEMBLY
    1. Install the steering post assembly with the 4 nuts.

      Torque: 25 N*m (255 kgf*cm, 18 ft.*lbf)

    2. Install the ground wire with the bolt.

      Torque: 8.4 N*m (85 kgf*cm, 74 in.*lbf)

    3. Engage the clamp.
    4. Connect the 2 connectors.
    5. Connect the connectors and engage the wire harness clamps to the steering post assembly.
  4. INSTALL NO. 2 AIR DUCT SUB-ASSEMBLY
    1. Engage the 2 claws and guide to install the No. 2 air duct sub-assembly.
  5. CONNECT STEERING INTERMEDIATE SHAFT ASSEMBLY
    1. Connect the steering intermediate shaft assembly to the steering link assembly.

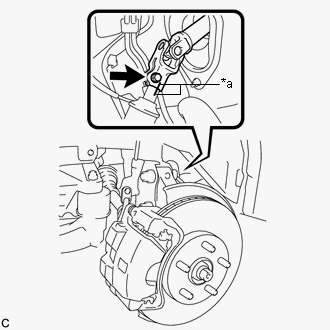

      GTY652441Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION

      *a Matchmark
      NOTE:

      Align the matchmarks on the steering intermediate shaft assembly and the steering link assembly.

    2. Install a new bolt.

      Torque: 35 N*m (360 kgf*cm, 26 ft.*lbf)

    3. Tighten the clamp.

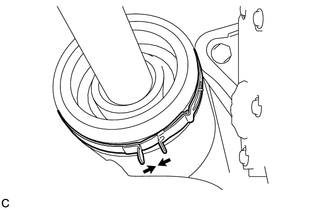

      GTY248411Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  6. INSTALL TURN SIGNAL SWITCH ASSEMBLY WITH SPIRAL CABLE SUB-ASSEMBLY
    NOTE:
    • Do not replace the spiral cable with sensor sub-assembly with the battery connected and the engine switch on (IG).
    • Do not rotate the spiral cable with sensor sub-assembly without the steering wheel with the battery connected and the engine switch on (IG).
    • Ensure that the steering wheel is installed and aligned straight when inspecting the steering sensor.
    1. Engage the 3 claws to install the turn signal switch assembly with spiral cable sub-assembly to the steering post assembly.
    2. Connect the connectors to the turn signal switch assembly with spiral cable sub-assembly.
  7. INSTALL UPPER STEERING COLUMN COVER
    1. Engage the 2 claws to install the upper steering column cover.
    2. Engage the 4 clips and 2 guides to the upper steering column cover.
  8. INSTALL LOWER STEERING COLUMN COVER (for Manual Tilt and Manual Telescopic Steering Column)
    1. Engage the 2 claws to install the lower steering column cover.

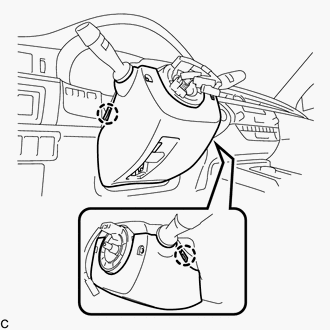

      GTY627975Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

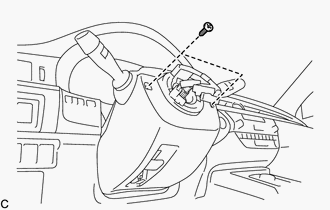

    2. Install the 2 screws.
      GTY627972Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Torque: 2.0 N*m (20 kgf*cm, 18 in.*lbf)

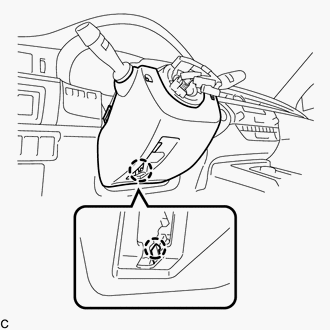

    3. Engage the claw.
      GTY627974Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  9. INSTALL LOWER STEERING COLUMN COVER (for Power Tilt and Power Telescopic Steering Column)
    1. Engage the 2 claws to install the lower steering column cover.

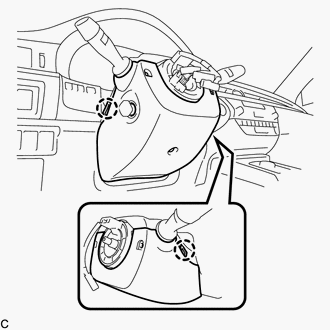

      GTY625495Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

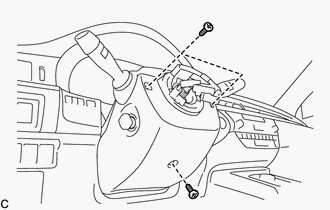

    2. Install the 3 screws.
      GTY625494Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Torque: 2.0 N*m (20 kgf*cm, 18 in.*lbf)

  10. INSTALL LOWER NO. 1 INSTRUMENT PANEL AIRBAG ASSEMBLY

    (Refer to INSTALLATION [07/2015 - ] )

  11. TURN FRONT WHEELS TO FACE STRAIGHT AHEAD
  12. INSPECT AND ADJUST SPIRAL CABLE WITH SENSOR SUB-ASSEMBLY

    Refer to PROCEDURE - Step 8 Refer to PROCEDURE - Step 8

  13. INSTALL STEERING WHEEL ASSEMBLY

    See step  5

  14. INSPECT STEERING WHEEL CENTER POINT
  15. INSTALL HORN BUTTON ASSEMBLY

    (Refer to INSTALLATION [07/2015 - 08/2016] Refer to INSTALLATION [08/2016 - ] )

  16. INSTALL FRONT WHEEL LH

    Torque: 103 N*m (1049 kgf*cm, 76 ft.*lbf)

  17. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL (for Power Tilt and Power Telescopic Steering Column)
    NOTE:
    • When disconnecting the cable, some systems need to be initialized after the cable is reconnected (Refer to INITIALIZATION [07/2015 - ] ).
    • Connect the cable to the negative (-) battery terminal with the front wheels facing straight ahead.
    • Reset the auto tilt away function setting to the previous condition by changing the customize parameter (Refer to CUSTOMIZE PARAMETERS [07/2015 - ] ).
  18. TORQUE SENSOR ZERO POINT CALIBRATION

    (Refer to CALIBRATION [07/2015 - ] )

  19. ADJUST PARKING ASSIST MONITOR SYSTEM (w/ Parking Assist Monitor System)
