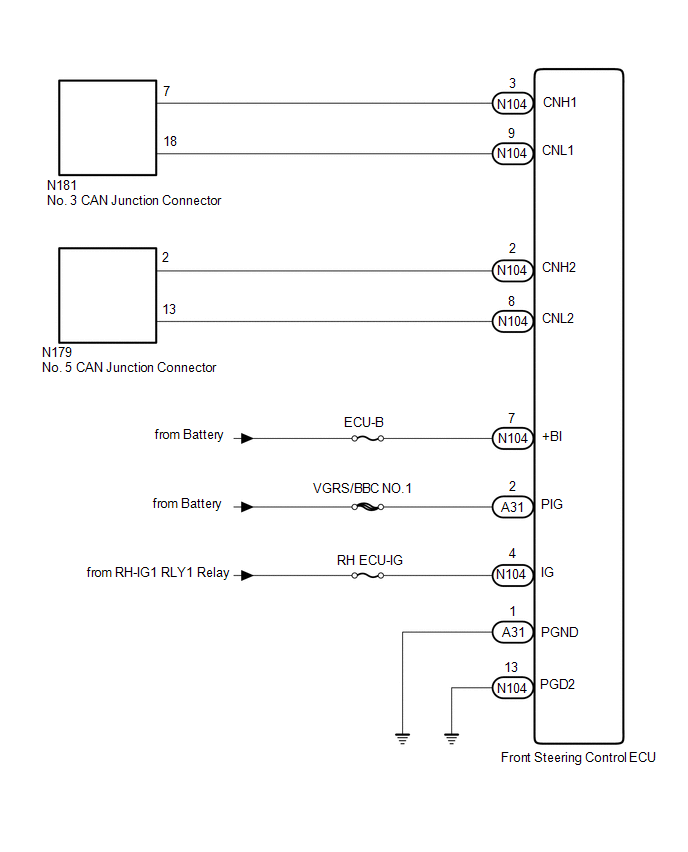

Steering Control ECU Communication Stop Mode [09/2018 - ]: Wiring Diagram

GTY786869

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
