System Diagram [09/2014 - 10/2015]

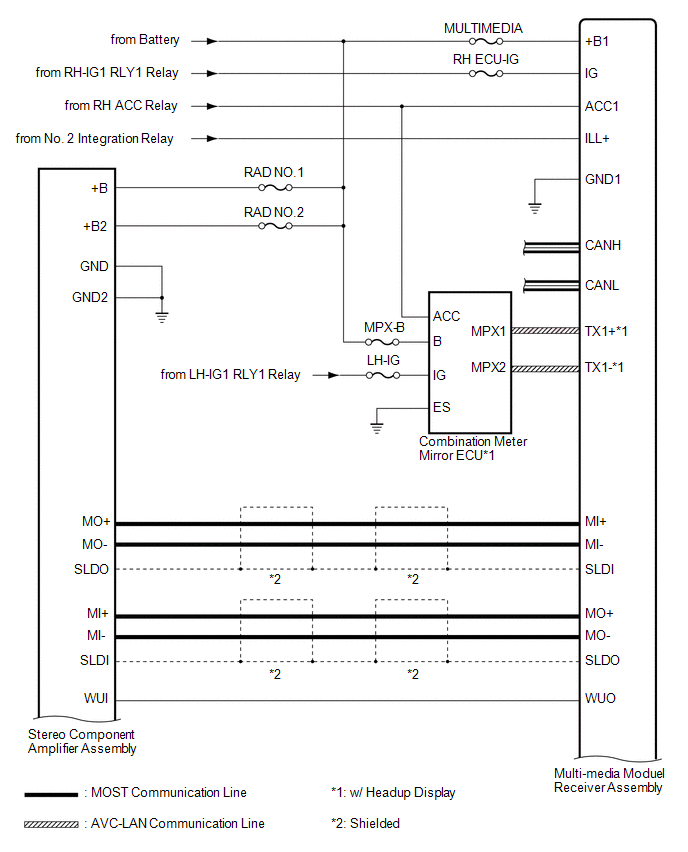

GTY501738Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

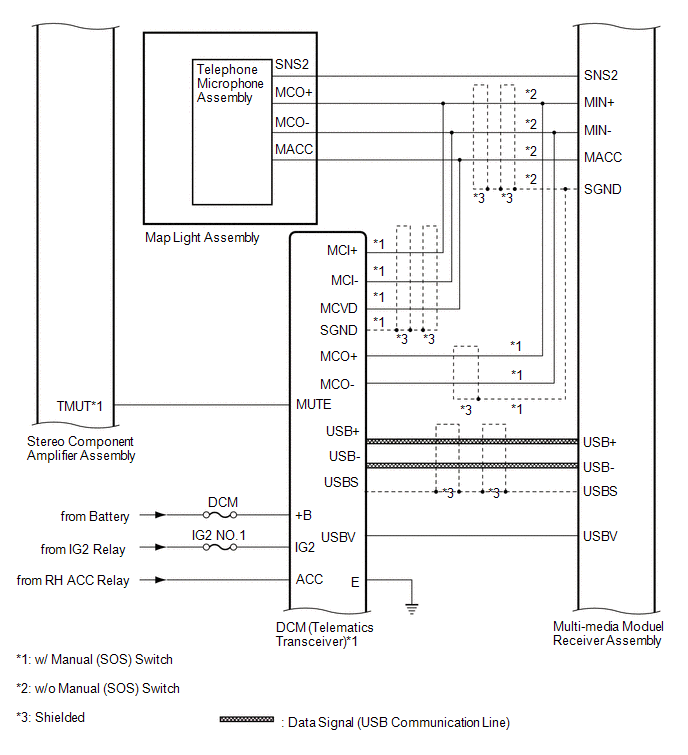

GTY654594Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

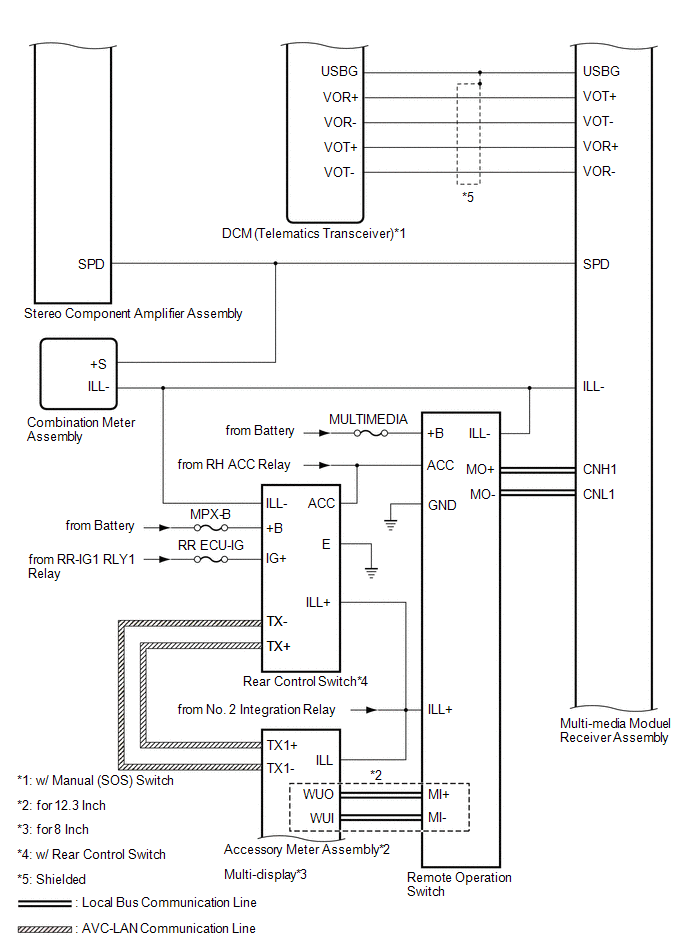

GTY503360Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

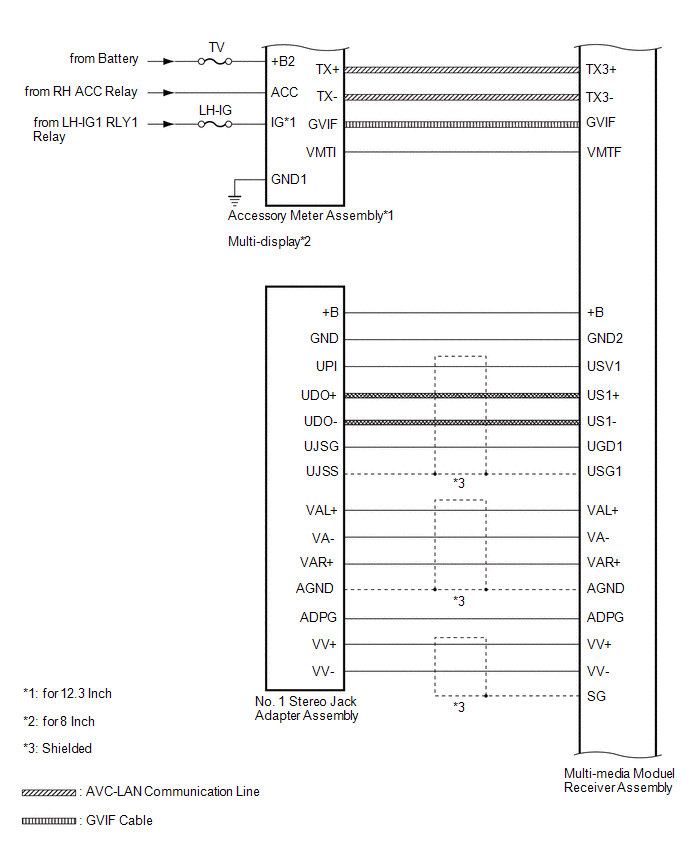

GTY495432Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

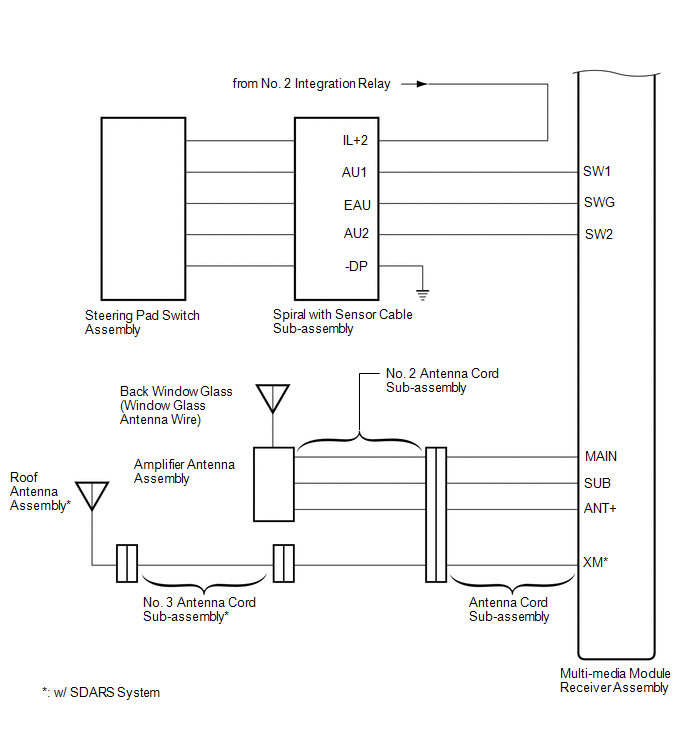

GTY635550Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

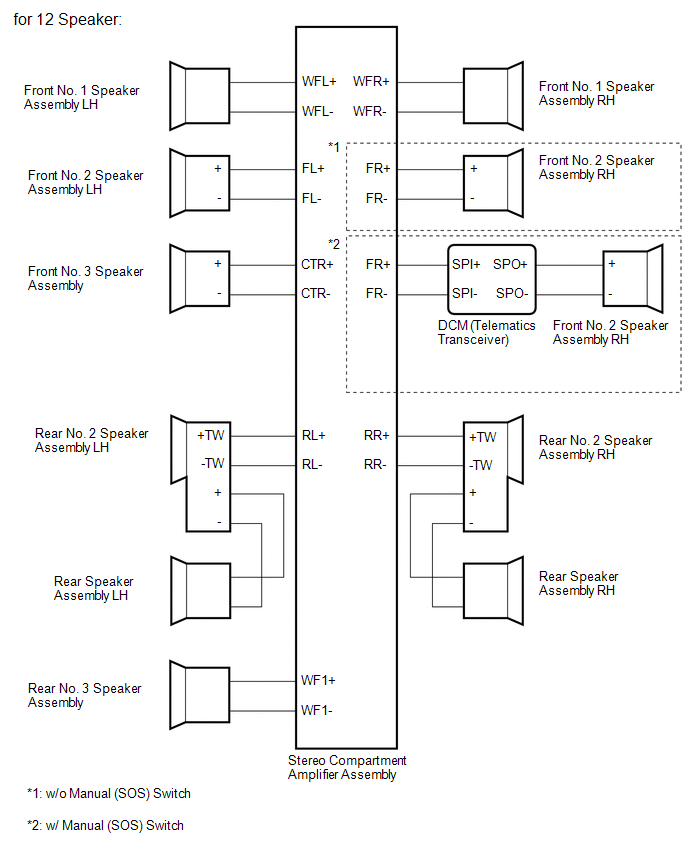

GTY521629Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

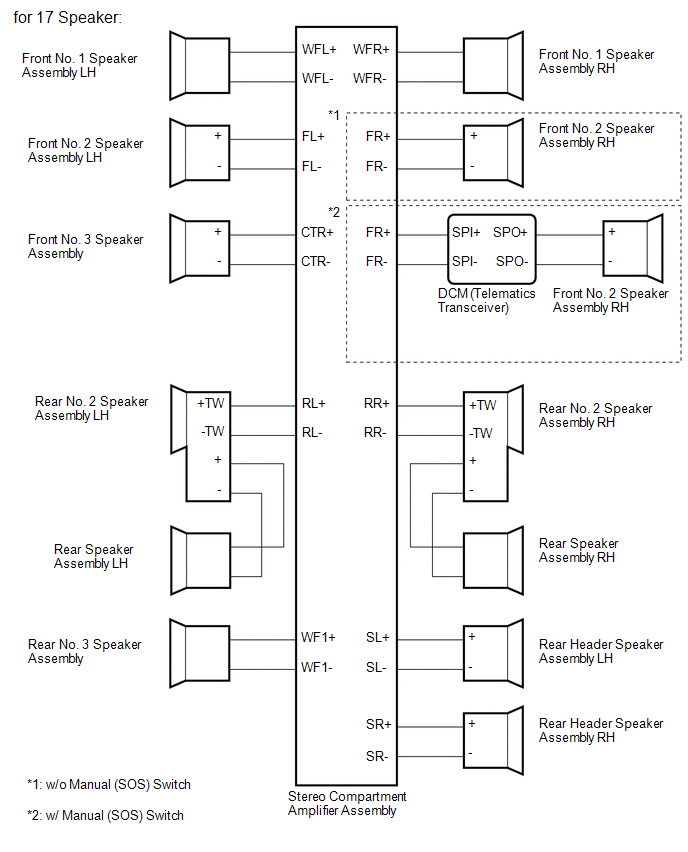

GTY632445Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
