Confirmation Driving Pattern

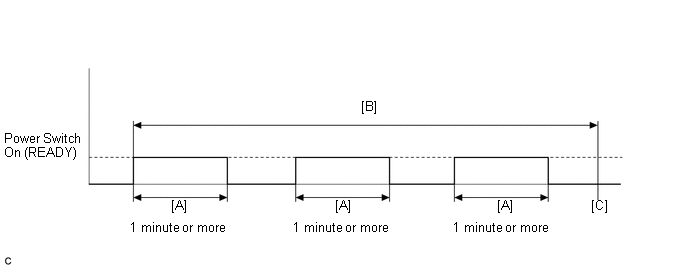

Fig 1: Confirmation Driving Pattern Chart

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Connect the Techstream to the DLC3.
2. Turn the power switch on (IG) and turn the Techstream on.
3. Clear the DTCs (even if no DTCs are stored, perform the clear DTC procedure).
4. Turn the power switch off.
5. Turn the power switch on (READY), and then after 1 minute or more, turn the power switch off. [A]
6. Repeat [A] 3 times. [B]
7. Turn the power switch on (IG) and turn the Techstream on.
8. Enter the following menus: Powertrain / Hybrid Control / Trouble Codes. [C]
9. Check that the permanent DTCs are cleared.
10. If the permanent DTCs are not cleared, perform the universal trip, and then check for permanent DTCs again.

HINT:

• If a permanent DTC is output, the system is malfunctioning.
• If no permanent DTC is output, the system is normal.
