Pre-Collision System (Diagnostic Codes & Circuit Tests)
>>
Pre-Collision System
>>
Circuit Tests
>>
Pre-collision System Cancel Switch Circuit [09/2014 - 10/2015]
>>
Wiring Diagram
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Pre-collision System Cancel Switch Circuit [09/2014 - 10/2015]: Wiring Diagram

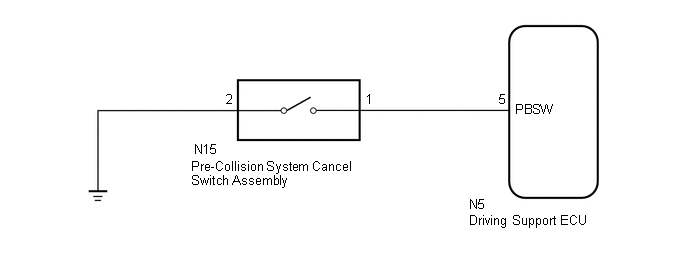

Fig 1: Pre-Collision System Cancel Switch Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
