System Diagram [09/2014 - ]

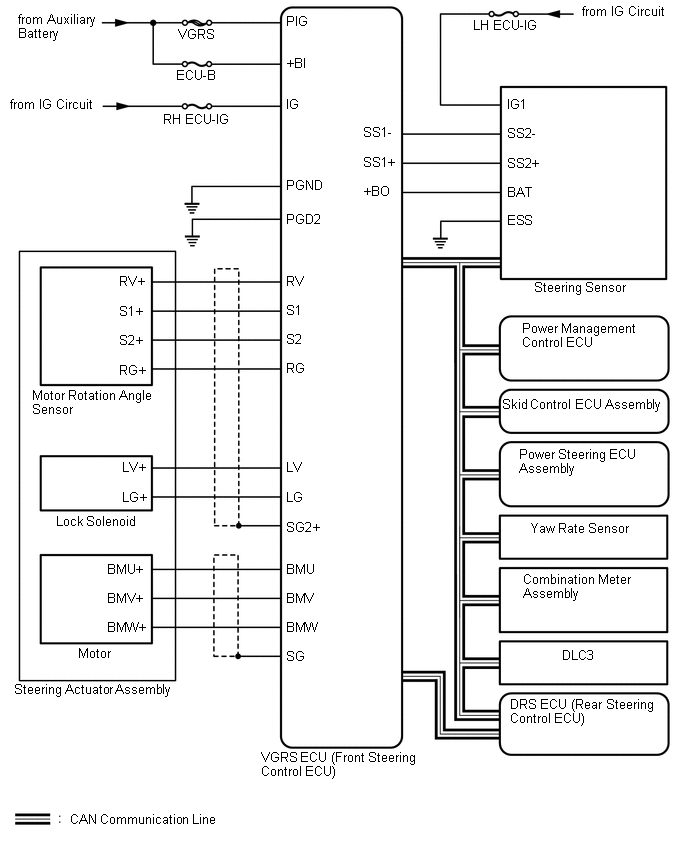

Fig 1: Variable Gear Ratio Steering System Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
