Removal [09/2014 - 10/2015]: Procedure

1. Disable the auto tilt away function by changing the customize parameter (See article. Refer to CUSTOMIZE PARAMETERS [09/2014 - ] ).
   NOTE:

   Record the current customize parameter setting (whether the auto tilt away function is enabled or disabled) in order to restore the current setting after finishing the operation.

   HINT:

   Performing the above operation causes the auto tilt away function to be disabled when the power switch is turned off.

2. Turn the power switch on (IG). Operate the tilt and telescopic switch to fully extend and lower the steering column assembly.
3. Turn the power switch off and disconnect the cable from the negative (-) auxiliary battery terminal.
   NOTE:

   When disconnecting the cable, some systems need to be initialized after the cable is reconnected (See article. Refer to INITIALIZATION [09/2014 - 10/2015] ).

(See article. Refer to REMOVAL [09/2014 - 10/2015] )

1. Remove the 3 screws.
2. Detach the 2 claws to remove the steering column lower cover.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   NOTE:

   Do not damage the tilt and telescopic switch.

3. Detach the 4 clips.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

4. Detach the 2 claws to remove the steering column upper cover.

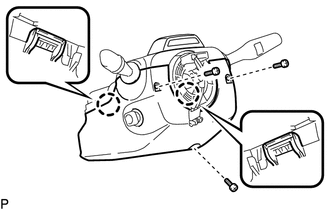

1. Remove the 3 screws.
2. Detach the 2 claws to remove the steering column lower cover.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   NOTE:

   Do not damage the tilt and telescopic switch.

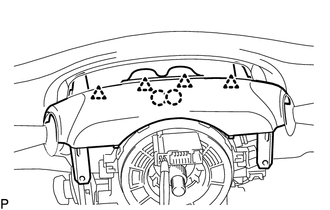

3. Detach the 4 clips.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

4. Detach the 2 claws.

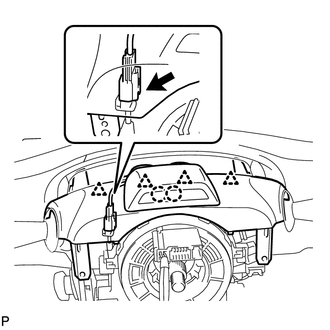

5. Disconnect the connectors and remove the steering column cover.

1. Disconnect the connectors.

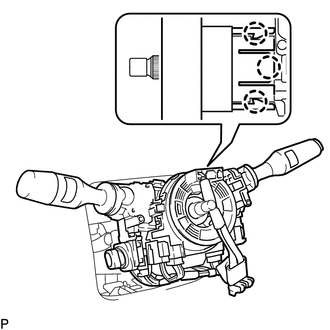

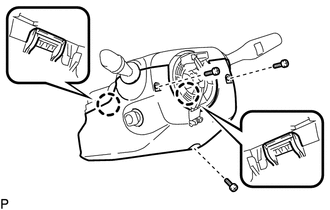

2. Detach the 3 claws with a screwdriver. Then remove the turn signal switch assembly with spiral cable sub-assembly from the steering column assembly.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

(See article. Refer to REMOVAL [09/2014 - ] )

Refer to PROCEDURE - Step 28

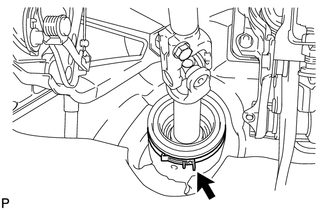

1. Remove the clamp from the steering column hole cover.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

2. Loosen the bolt of the steering sliding with shaft yoke closest to the vehicle interior.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   TEXT IN ILLUSTRATION



   *a	Vehicle Interior

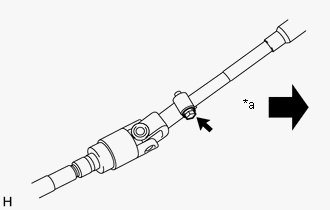

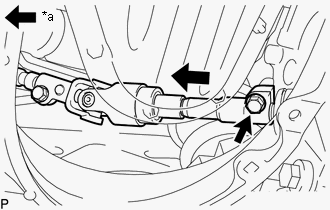

3. Remove the bolt of the power steering link and the steering sliding with shaft yoke.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   TEXT IN ILLUSTRATION



   *a	Vehicle Interior

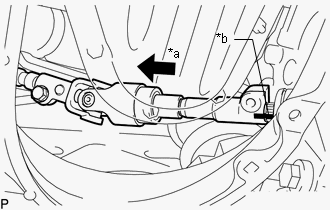

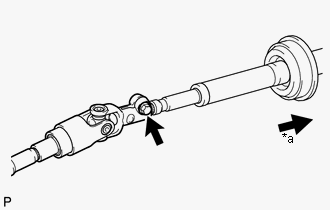

4. Slide the steering sliding with shaft yoke and place matchmarks.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   TEXT IN ILLUSTRATION



   *a	Slide
   *b	Matchmark

5. Disconnect the steering sliding with shaft yoke from the power steering link.

1. Disconnect the connectors.
2. Remove the brake pedal return spring.

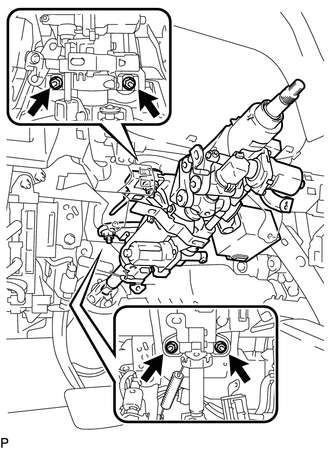

3. Remove the 4 nuts and steering column assembly.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Put matchmarks on the steering sliding with shaft yoke and steering column assembly.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   TEXT IN ILLUSTRATION



   *a

   Matchmark

2. Remove the bolt and disconnect the steering sliding with shaft yoke sub-assembly.

1. Remove the bolt and steering sliding with shaft yoke sub-assembly.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   TEXT IN ILLUSTRATION



   *a	Vehicle Interior

1. Remove the 2 bolts, 2 nuts and steering column hole cover.
