Catalyst Location

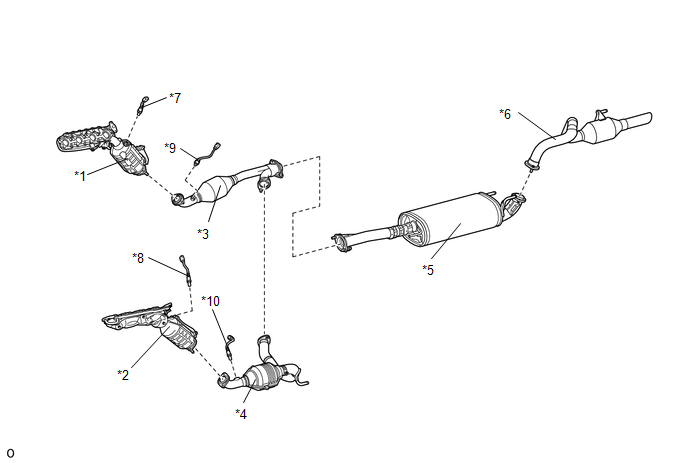

TEXT IN ILLUSTRATION
| *1 | Exhaust Manifold Assembly RH (TWC: Front catalyst) | *2 | Exhaust Manifold Assembly LH (TWC: Front catalyst) |
| *3 | Front Exhaust Pipe Assembly (TWC: Rear catalyst) | *4 | Front No. 2 Exhaust Pipe Assembly (TWC: Rear catalyst) |
| *5 | Center Exhaust Pipe Assembly | *6 | Tailpipe Assembly |
| *7 | Air Fuel Ratio Sensor (for Bank 2 Sensor 1) | *8 | Air Fuel Ratio Sensor (for Bank 1 Sensor 1) |
| *9 | Heated Oxygen Sensor (for Bank 2 Sensor 2) | *10 | Heated Oxygen Sensor (for Bank 1 Sensor 2) |
