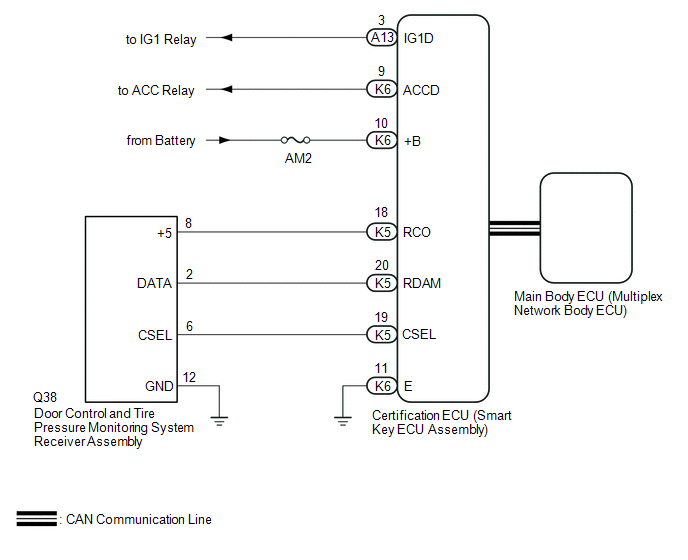

All Door Entry Lock/Unlock Functions And Wireless Functions Do Not Operate [09/2020 - ]: Wiring Diagram

GTY965645Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
