Dtc B27A2: Open In Front Passenger Side Electrical Antenna Circuit [04/2013 - ]: Procedure

1. Check That The Connectors Are Properly Connected To The Certification Ecu (Smart Key Ecu Assembly) And Front Door Outside Handle Assembly (For Front Passenger Door).

   Ok

   Connectors Are Properly Connected.

   Result

   Proceed To
   Ok
   Ng

Result:

Ng

Connect Connectors Properly

Result:

Ok

See Step  2

1. Disconnect The K6 Certification Ecu (Smart Key Ecu Assembly) Connector.
2. Disconnect The N11 Front Door Outside Handle Assembly (For Front Passenger Door) Connector.
3. Measure The Resistance According To The Value(S) In The Table Below.

   Standard Resistance

   Tester Connection	Condition	Specified Condition
   K6-2 (Clg2) - N11-6 (Ant1)	Always	Below 1 Ω
   K6-1 (Cg2B) - N11-4 (Ant2)	Always	Below 1 Ω
   K6-11 (E) - Body Ground	Always	Below 1 Ω
   K6-2 (Clg2) Or N11-6 (Ant1) - Body Ground	Always	10 KΩ Or Higher
   K6-1 (Cg2B) Or N11-4 (Ant2) - Body Ground	Always	10 KΩ Or Higher

4. Reconnect The K6 Certification Ecu (Smart Key Ecu Assembly) Connector.

   Result

   Proceed To
   Ok
   Ng

Result:

Ng

Repair Or Replace Harness Or Connector

Result:

Ok

See Step  3

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

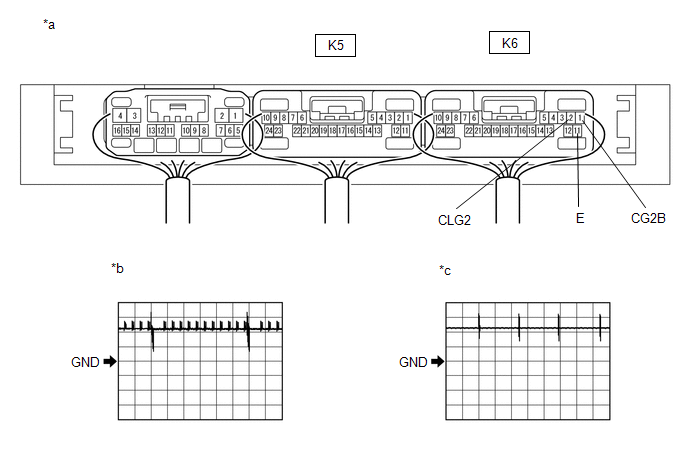

1. Using An Oscilloscope, Check The Waveform.

   Ok

   Tester Connection	Condition	Tool Setting	Specified Condition
   K6-2 (Clg2) - K6-11 (E)	Procedure: Engine Switch Off All Doors Closed Electrical Key Transmitter Sub-Assembly Not Inside Vehicle All Doors Locked Through Wireless Operation (Electrical Key Transmitter Sub-Assembly Brought Inside Detection Area*)	5 V/Div., 500 Ms/Div.	Pulse Generation (See Waveform 1)
   	Procedure: Engine Switch Off All Doors Closed Electrical Key Transmitter Sub-Assembly Not Inside Vehicle All Doors Locked Through Wireless Operation (Electrical Key Transmitter Sub-Assembly Brought Outside Detection Area*)	5 V/Div., 500 Ms/Div.	Pulse Generation (See Waveform 2)
   K6-1 (Cg2B) - K6-11 (E)	Procedure: Engine Switch Off All Doors Closed Electrical Key Transmitter Sub-Assembly Not Inside Vehicle All Doors Locked Through Wireless Operation (Electrical Key Transmitter Sub-Assembly Brought Inside Detection Area*)	5 V/Div., 500 Ms/Div.	Pulse Generation (See Waveform 1)
   	Procedure: Engine Switch Off All Doors Closed Electrical Key Transmitter Sub-Assembly Not Inside Vehicle All Doors Locked Through Wireless Operation (Electrical Key Transmitter Sub-Assembly Brought Outside Detection Area*)	5 V/Div., 500 Ms/Div.	Pulse Generation (See Waveform 2)

   1. *: For Details About The Entry Function Detection Area, Refer To Operation Check.

      Refer To Operation Check [04/2013 - 09/2020] , or refer to Operation Check [09/2020 - 09/2022] , or refer to Operation Check [09/2022 - ]

   Result

   Proceed To
   Ok
   Ng

Result:

Ng

Replace Certification Ecu (Smart Key Ecu Assembly). Refer To  Removal [04/2013 - 08/2015]  , or refer to  Removal [08/2015 - 09/2020]  , or refer to  Removal [09/2020 - ]

Result:

Ok

See Step  4

1. Replace The Front Door Outside Handle Assembly (For Front Passenger Door) With A New One Or The Front Door Outside Handle Assembly (For Driver Door) If It Is Functioning Properly.

   Refer To Disassembly [04/2013 - 10/2016] , or refer to Disassembly [10/2016 - 09/2020] , or refer to Disassembly [09/2020 - ]

   Result

   Proceed To
   Next

Result:

Next

See Step  5

1. Clear The Dtcs.

   Body Electrical > Smart Access > Clear Dtcs

   Result

   Proceed To
   Next

Result:

Next

See Step  6

1. Check For Dtcs.

   Body Electrical > Smart Access > Trouble Codes

   Ok

   Dtc B27A2 Is Not Output.

   Result

   Proceed To
   Ok
   Ng

Result:

Ok

End (Front Door Outside Handle Assembly (For Front Passenger Door) Was Defective)

Result:

Ng

Replace Certification Ecu (Smart Key Ecu Assembly). Refer To  Removal [04/2013 - 08/2015]  , or refer to  Removal [08/2015 - 09/2020]  , or refer to  Removal [09/2020 - ]
