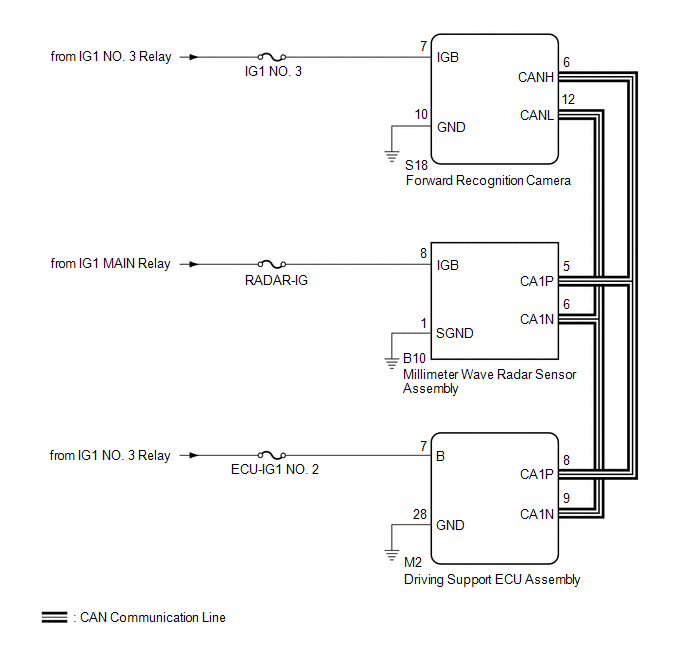

DTC U0235: Lost Communication with Cruise Control Front Distance Range Sensor; DTC U1104: Lost Communication with Driving Support ECU [10/2016 - 09/2020]: Wiring Diagram

GTY647290Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
