Front Camera Module Communication Stop Mode [10/2016 - 09/2020]: Wiring Diagram

w/ No. 10 CAN Junction Connector:

GTY797806Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

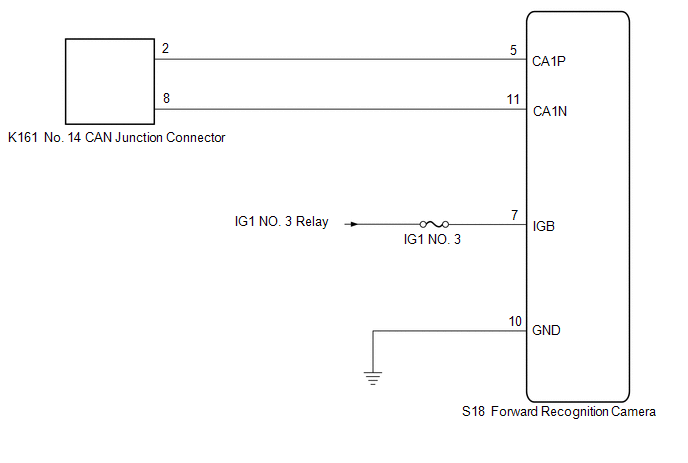

w/ No. 14 CAN Junction Connector:

GTY797809Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
