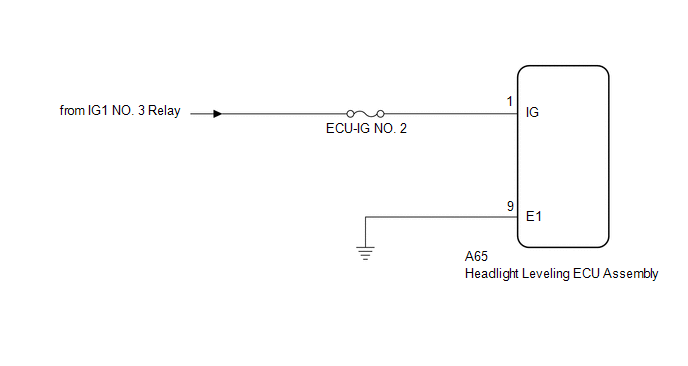

Headlight Leveling ECU Power Source Circuit [04/2013 - 10/2016]: Wiring Diagram

GTY458778Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
