Removal [04/2013 - 09/2020]: Procedure

  1. REMOVE LUGGAGE OUTSIDE COMPARTMENT DOOR GARNISH SUB-ASSEMBLY

    Refer to REMOVAL [04/2013 - 09/2020]

  2. REMOVE LICENSE PLATE LIGHT ASSEMBLY

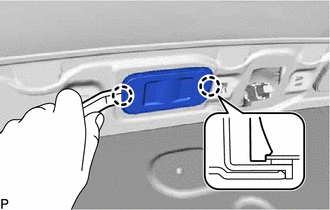

    1. Using a moulding remover, disengage the 2 claws to disconnect the license plate light assembly.
      GTY469656Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disconnect the connector to remove the license plate light assembly.
