Installation [04/2013 - 10/2016]: Procedure

  1. INSTALL REAR LIGHT ASSEMBLY
    1. Install the rear light assembly with the 4 nuts.

      Torque: 3.9 N*m (40 kgf*cm, 35 in.*lbf)

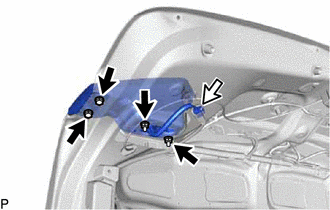

      GTY461332Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Connect the connector.
  2. INSTALL LUGGAGE COMPARTMENT DOOR COVER

    Refer to PROCEDURE - Step 12
