Components [10/2016 - 10/2017]

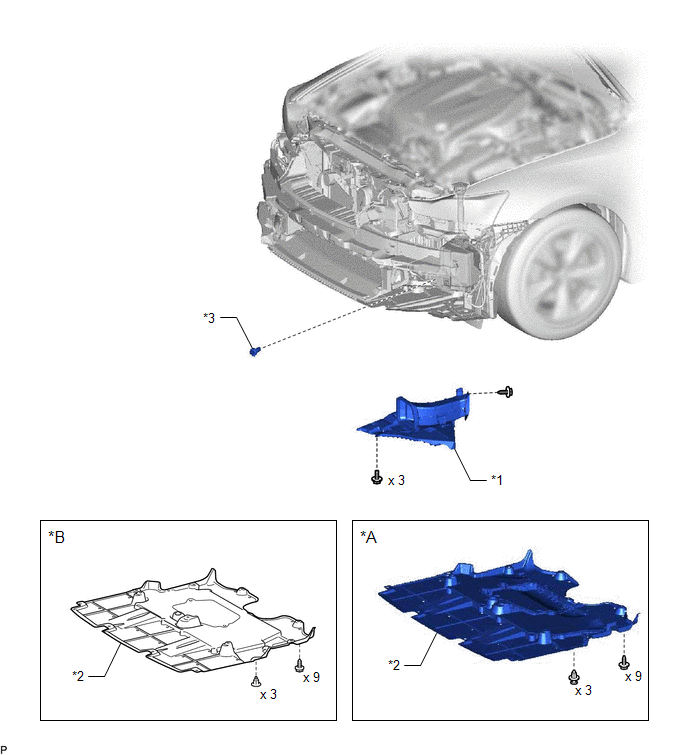

Fig 1: Washer Level Warning Switch Replacement Components [10/2016 - 10/2017]
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*A
for 8AR-FTS
*B
for 2GR-FSE
*1
COOL AIR INTAKE DUCT
*2
ENGINE UNDER COVER
*3
LEVEL WARNING SWITCH ASSEMBLY
-
-
