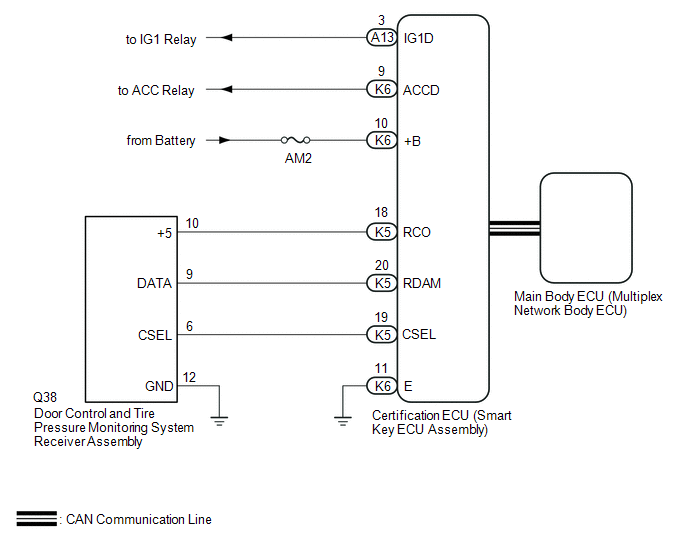

All Door Entry Lock/Unlock Functions And Wireless Functions Do Not Operate [04/2013 - 09/2020]: Wiring Diagram

GTY466284Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
