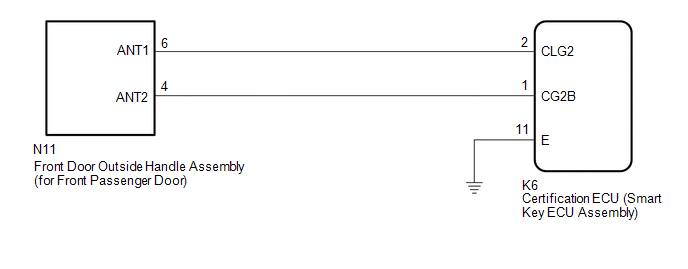

Front Passenger Side Door Entry Unlock Function Does Not Operate [04/2013 - ]: Wiring Diagram

GTY456459Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
