Pattern Select Switch Snow Mode Circuit [04/2013 - 10/2017]: Wiring Diagram

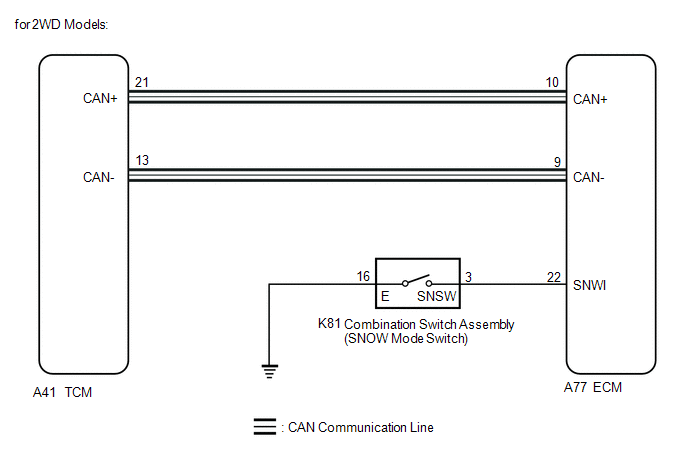

GTY470018Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

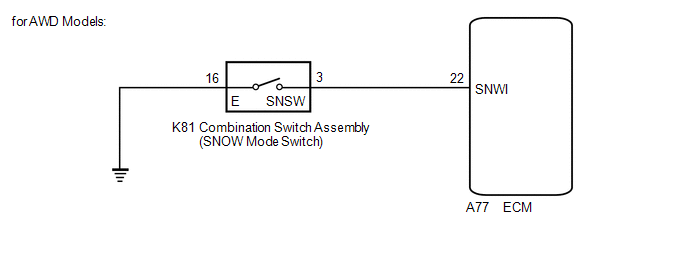

GTY470732Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
