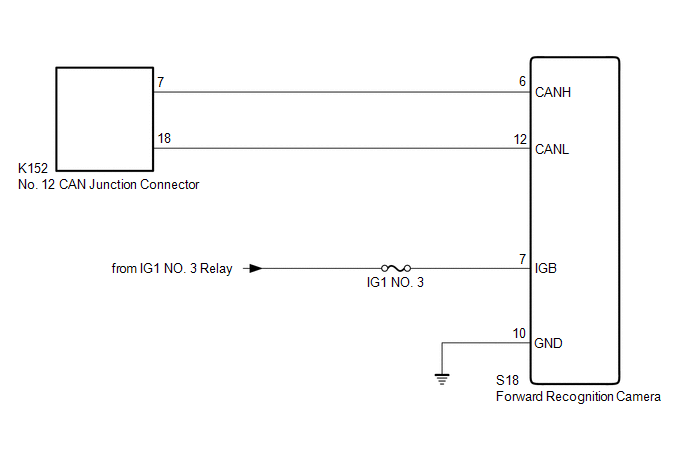

DTC U023A: Lost Communication with Front Camera Module [10/2016 - 09/2018]: Wiring Diagram

GTY617245Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
