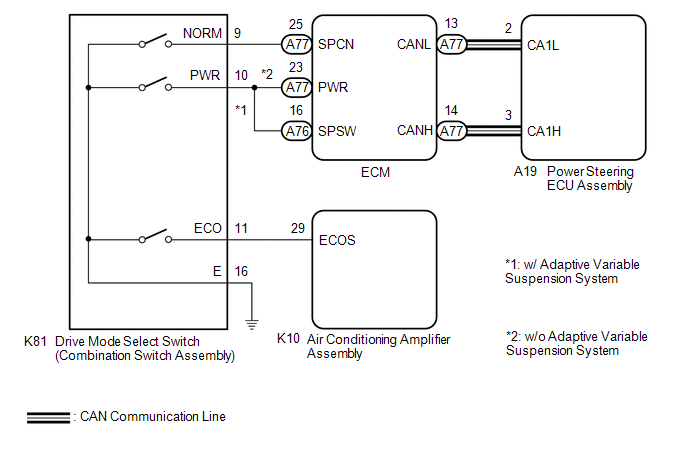

Drive Mode Select Switch Circuit [04/2013 - 08/2015]: Wiring Diagram

GTY462066

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
