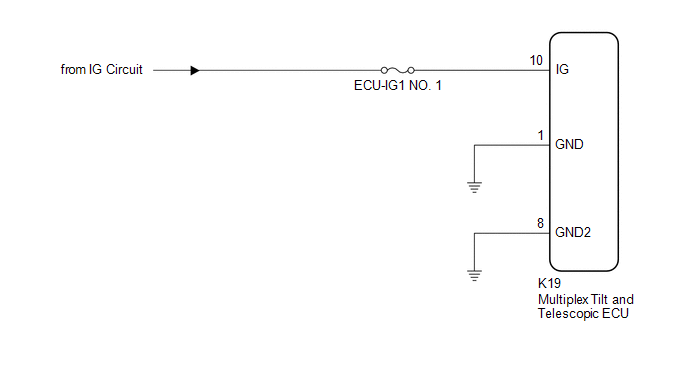

IG Power Source Circuit [04/2013 - ]: Wiring Diagram

GTY470876

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
