Components [08/2015 - 10/2016]

Fig 1: Steering Column Assembly Replacement Components [08/2015 - 10/2016] (1 Of 8)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1	STEERING WHEEL ASSEMBLY	-	-
	N.m (kgf/cm, ft.lbf): Specified torque	-	-

Fig 2: Steering Column Assembly Replacement Components [08/2015 - 10/2016] (2 Of 8)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*A	for Manual Tilt and Manual Telescopic Steering Column	-	-
*1	STEERING COLUMN COVER	*2	TURN SIGNAL SWITCH ASSEMBLY WITH SPIRAL CABLE SUB-ASSEMBLY

Fig 3: Steering Column Assembly Replacement Components [08/2015 - 10/2016] (3 Of 8)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*A	for Power Tilt and Power Telescopic Steering Column	-	-
*1	STEERING COLUMN COVER	*2	TURN SIGNAL SWITCH ASSEMBLY WITH SPIRAL CABLE SUB-ASSEMBLY

Fig 4: Steering Column Assembly Replacement Components With Torque Specifications [08/2015 - 10/2016] (4 Of 8)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*A	for Manual Tilt and Manual Telescopic Steering Column	*B	w/o VGRS
*C	w/ VGRS	-	-
*1	STEERING COLUMN ASSEMBLY	*2	NO. 2 STEERING INTERMEDIATE SHAFT ASSEMBLY
*3	BRAKE PEDAL RETURN SPRING	*4	AIR DUCT SUB-ASSEMBLY
*5	STEERING LOCK ACTUATOR ASSEMBLY	*6	STEERING LOCK SET BOLT
*7	STEERING ACTUATOR ASSEMBLY	-	-
	N.m (kgf/cm, ft.lbf): Specified torque	•	Non-reusable part

Fig 5: Steering Column Assembly Replacement Components With Torque Specifications [08/2015 - 10/2016] (5 Of 8)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*A	for Power Tilt and Power Telescopic Steering Column	*B	w/o VGRS
*C	w/ VGRS	-	-
*1	STEERING COLUMN ASSEMBLY	*2	NO. 2 STEERING INTERMEDIATE SHAFT ASSEMBLY
*3	BRAKE PEDAL RETURN SPRING	*4	AIR DUCT SUB-ASSEMBLY
*5	STEERING LOCK ACTUATOR ASSEMBLY	*6	STEERING LOCK SET BOLT
*7	MULTIPLEX TILT AND TELESCOPIC ECU	*8	STEERING ACTUATOR ASSEMBLY
*9	TILT STEERING GEAR WITH MOTOR ASSEMBLY	-	-
	N.m (kgf/cm, ft.lbf): Specified torque	•	Non-reusable part

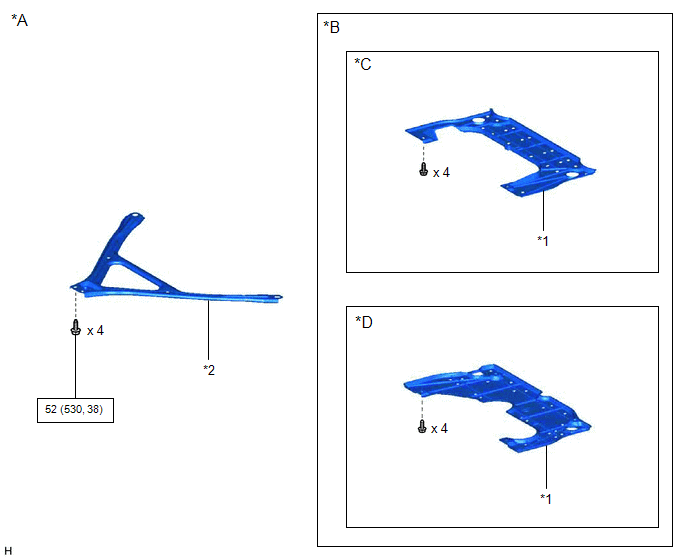

Fig 6: Steering Column Replacement Components With Torque Specifications [08/2015 - 10/2016] (6 Of 8)

*A	for 2WD	*B	w/ NO. 2 ENGINE UNDER COVER
*C	for 2GR-FSE	*D	for 8AR-FTS
*1	NO. 2 ENGINE UNDER COVER	*2	FRONT SUSPENSION MEMBER BRACE
	N.m (kgf/cm, ft.lbf): Specified torque	-	-

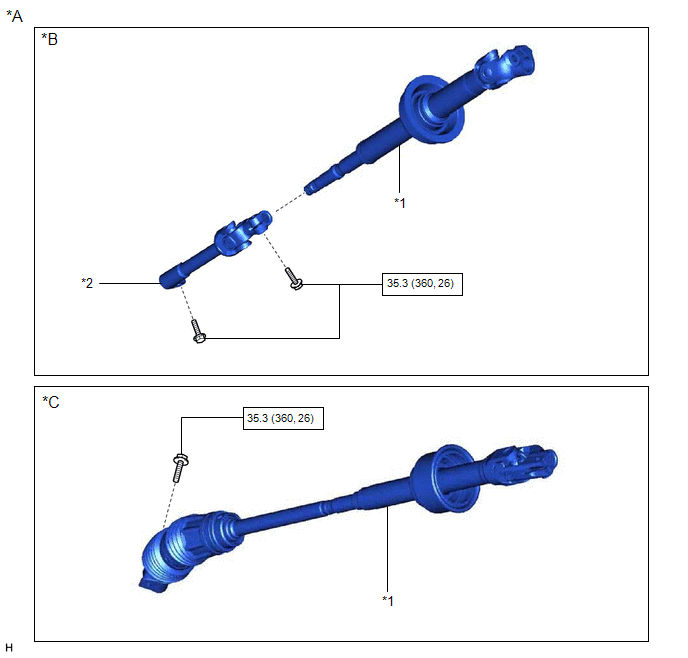

Fig 7: Steering Column Replacement Components With Torque Specifications [08/2015 - 10/2016] (7 Of 8)

*A	w/o VGRS	*B	for 2WD
*C	for AWD	-	-
*1	NO. 2 STEERING INTERMEDIATE SHAFT ASSEMBLY	*2	STEERING SLIDING YOKE SUB-ASSEMBLY
	N.m (kgf/cm, ft.lbf): Specified torque	-	-

Fig 8: Steering Column Assembly Replacement Components With Torque Specifications [08/2015 - 10/2016] (8 Of 8)

*A	w/ VGRS	-	-
*1	STEERING ACTUATOR ASSEMBLY	*2	STEERING SLIDING YOKE SUB-ASSEMBLY
*3	LOWER MAIN SHAFT DUST COVER	-	-
	N.m (kgf/cm, ft.lbf): Specified torque	-	-
