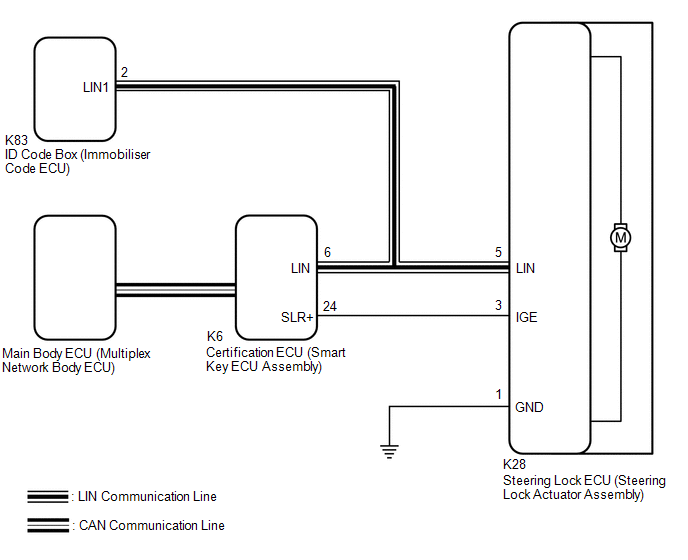

Steering Lock does not Lock [04/2013 - 09/2022]: Wiring Diagram

GTY466851

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
