Components [09/2020 - ]

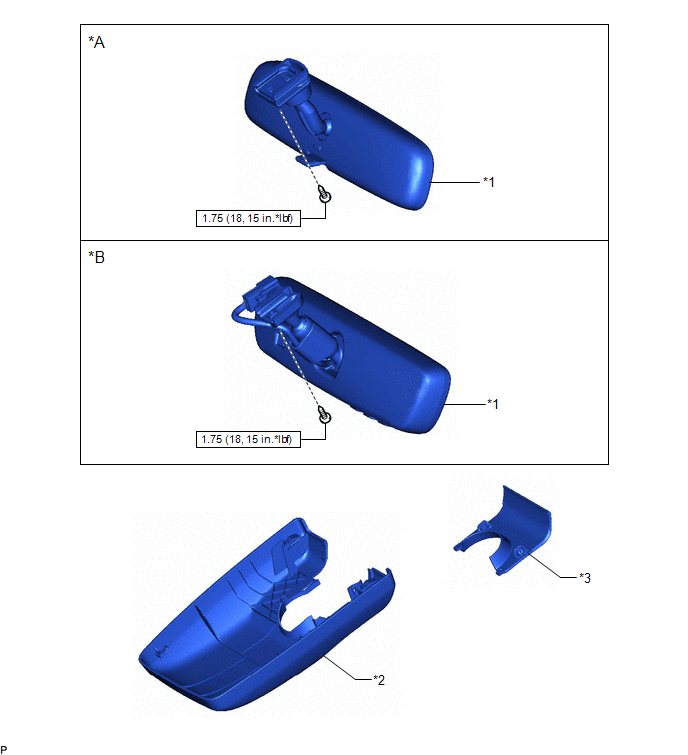

Fig 1: Rear View Mirror Replacement Components With Torque Specifications [09/2020 - ]
GTY1082791Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*A w/o EC Mirror *B w/ EC Mirror
*1 INNER REAR VIEW MIRROR ASSEMBLY *2 NO. 1 FORWARD RECOGNITION COVER
*3 NO. 2 FORWARD RECOGNITION COVER - -
N.m (kgf/cm, ft.lbf): Specified torque - -
