Inspection [09/2015 - ]: Procedure
- INSPECT DOOR CONTROL SWITCH ASSEMBLY
- Measure the resistance according to the value(s) in the table below.
Standard resistance
Tester Connection Switch Condition Specified Condition 2 (L) - 3 (E) Lock Below 1 Ω 2 (L) - 3 (E)
4 (UL) - 3 (E)OFF 10 kΩ or higher 4 (UL) - 3 (E) Unlock Below 1 Ω - If the result is not as specified, replace the door control switch assembly.

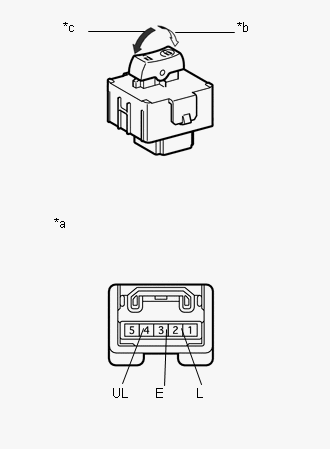

TEXT IN ILLUSTRATION*a Component without harness connected

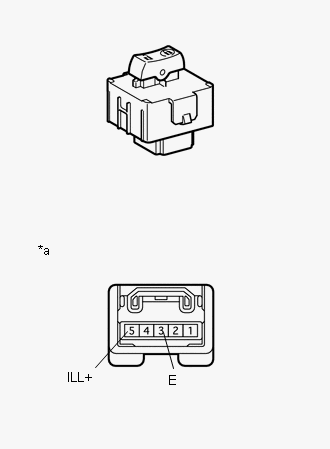

(Door Control Switch Assembly)*b Lock *c Unlock - When terminal 5 (ILL+) of the connector is connected to the positive (+) battery terminal and terminal 3 (E) is connected to the negative (-) battery terminal, check that the indicator (LED) illuminates.
HINT:
If result is not as specified, replace the door control switch assembly.
TEXT IN ILLUSTRATION*a Component without harness connected
(Door Control Switch Assembly)
- Measure the resistance according to the value(s) in the table below.
