EVAP System [09/2015 - ]: Wiring Diagram

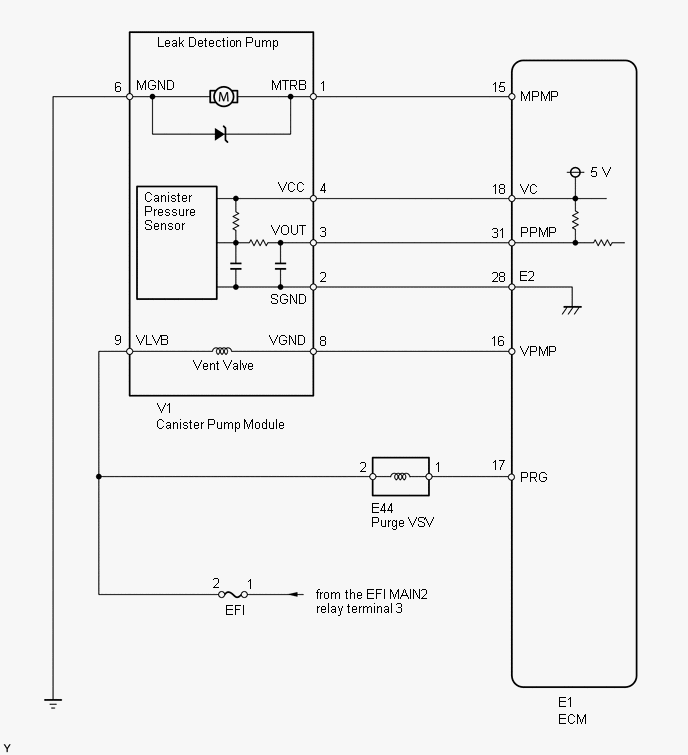

Fig 1: Canister Pump Module Circuit Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
