Rear Power Window LH does not Operate with Rear Power Window Switch LH [09/2015 - ]: Procedure

1. Check for LIN communication system DTCs related to the power window control system. Refer to DTC CHECK / CLEAR [09/2015 - ] .

   OK

   LIN communication system DTCs are not output.

Result:

NG

GO TO LIN COMMUNICATION SYSTEM

Refer to DIAGNOSTIC TROUBLE CODE CHART [09/2015 - ] )

Result:

OK

See step  2

1. Check if DTC B2312 is output. Refer to DTC B2312: Power Window Switch Malfunction [09/2015 - ] .

   OK

   DTC B2312 is not output.

Result:

NG

GO TO DTC B2312

Refer to DTC B2312: Power Window Switch Malfunction [09/2015 - ] )

Result:

OK

See step  3

1. Use the Data List to check if the power window regulator motor is functioning properly. Refer to DATA LIST / ACTIVE TEST [09/2015 - ] .
   RL-DOOR MOTOR



   Tester Display	Measurement Item/Range	Normal Condition	Diagnostic Note
   RL Door P/W Up SW	Rear power window LH manual up signal / ON or OFF	ON: Rear power window LH manual up switch operated OFF: Rear power window LH switch not operated	-
   RL Door P/W Down SW	Rear power window LH manual down signal / ON or OFF	ON: Rear power window LH manual down switch operated OFF: Rear power window LH switch not operated	-

   OK

   Techstream display changes according to operation of rear power window switch LH.

Result:

OK

REPLACE REAR POWER WINDOW REGULATOR MOTOR ASSEMBLY LH

Refer to REMOVAL [09/2015 - ] )

Result:

NG

See step  4

1. Disconnect the J10 switch connector.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

2. Measure the resistance according to the value(s) in the table below.

   Standard Resistance

   Tester Connection	Condition	Specified Condition
   J10-5 (GND) - Body ground	Always	Below 1 Ω

Result:

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR

Result:

OK

See step  5

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Disconnect the J11 motor connector.
2. Measure the voltage and resistance according to the value(s) in the table below.

   Standard Voltage

   Tester Connection	Condition	Specified Condition
   J11-2 (B) - Body ground	Always	11 to 14 V

   Standard Resistance

   Tester Connection	Condition	Specified Condition
   J11-1 (GND) - Body ground	Always	Below 1 Ω

Result:

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR

Result:

OK

See step  6

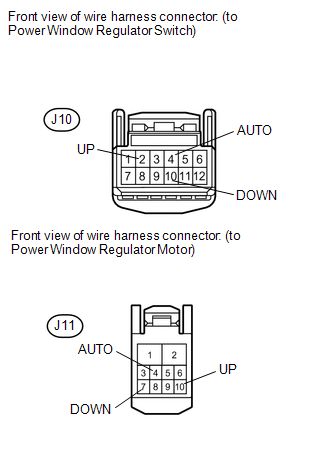

1. Disconnect the J10 switch connector.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

2. Disconnect the J11 motor connector.
3. Measure the resistance according to the value(s) in the table below.

   Standard Resistance

   Tester Connection	Condition	Specified Condition
   J10-2 (UP) - J11-10 (UP)	Always	Below 1 Ω
   J10-10 (DOWN) - J11-7 (DOWN)	Always	Below 1 Ω
   J10-4 (AUTO) - J11-4 (AUTO)	Always	Below 1 Ω
   J10-2 (UP) or J11-10 (UP) - Body ground	Always	10 kΩ or higher
   J10-10 (DOWN) or J11-7 (DOWN) - Body ground	Always	10 kΩ or higher
   J10-4 (AUTO) or J11-4 (AUTO) - Body ground	Always	10 kΩ or higher

Result:

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR

Result:

OK

See step  7

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Remove the rear power window regulator switch LH. Refer to REMOVAL [09/2015 - ] .
2. Measure the resistance according to the value(s) in the table below.

   Standard Resistance

   Tester Connection	Switch Condition	Specified Condition
   J10-2 (UP) - J10-5 (GND)	Manual up operation	Below 1 Ω
   J10-10 (DOWN) - J10-5 (GND)	Manual down operation	Below 1 Ω

Result:

OK

REPLACE REAR POWER WINDOW REGULATOR MOTOR ASSEMBLY LH

Refer to REMOVAL [09/2015 - ] )

Result:

NG

REPLACE REAR POWER WINDOW REGULATOR SWITCH ASSEMBLY LH

Refer to REMOVAL [09/2015 - ] )
