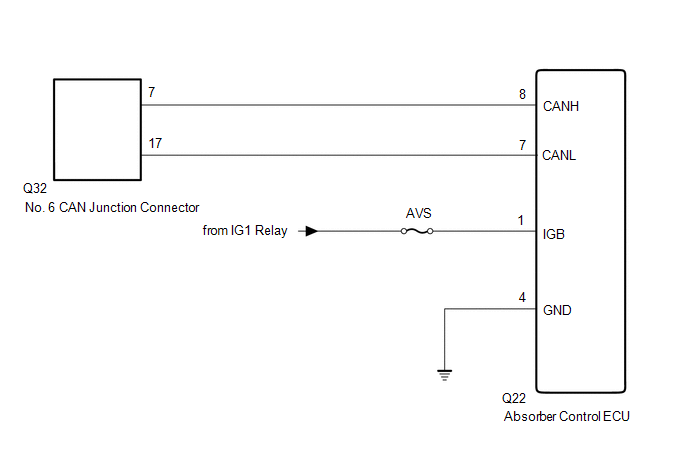

DTC U0132: Lost Communication with Ride Level Control Module [10/2014 - 09/2017]: Wiring Diagram

GTY497795Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
