Communication Devices
>>
Can Communication System - Diagnostic Codes
>>
Can Communication System
>>
DTC U1002: Lost Communication with Gateway Module (Main Body ECU) [09/2017 - 05/2019]
>>
Wiring Diagram
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.

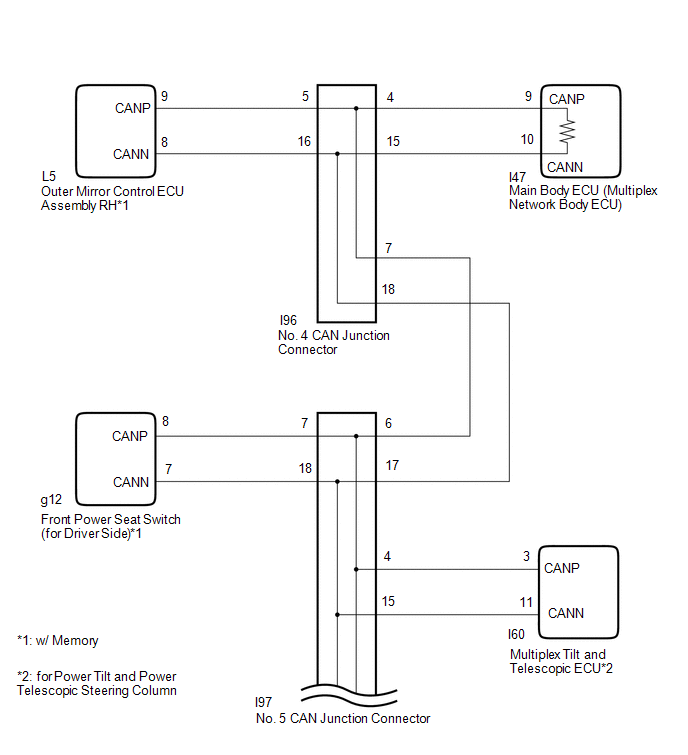

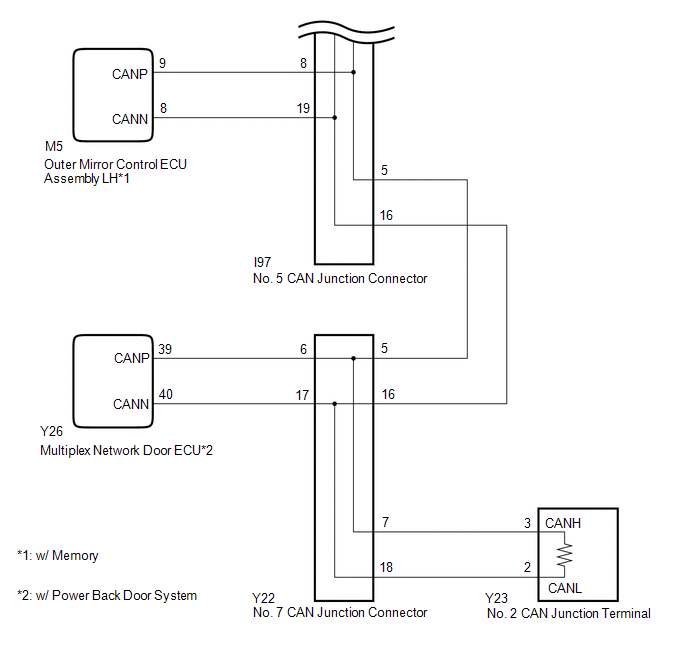

DTC U1002: Lost Communication with Gateway Module (Main Body ECU) [09/2017 - 05/2019]: Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
